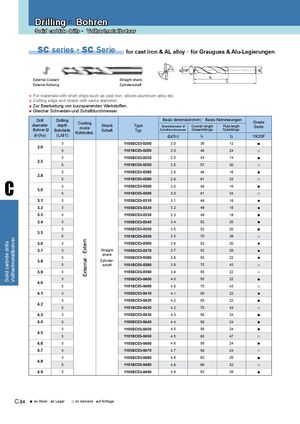

Каталог ZCC-CT сверла монолитные - страница 84

Drilling · Bohren
Solid carbide drills · Vollhartmetallbohrer

SC series · SC Serie for cast iron & AL alloy · für Grauguss & Alu-Legierungen


External Coolant Straight shank
Externe Kühlung Zylinderschaft

● For materials with short chips such as cast iron, silicon-aluminum alloy etc.
● Cutting edge and shank with same diameter.
● Zur Bearbeitung von kurzspanenden Werkstoffen.
● Gleicher Schneiden-und Schaftdurchmesser.
Drill Drilling Basic dimension(mm) · Basis Abmessungen
Cooling Grade
diameter depth Shank Type Shankdiameter Ø Overall length Flute length Sorte
Bohrer Ø mode Gesamtlänge Nutenlänge
Bohrtiefe Schaft Typ Schaftdurchmesser
Kühlmittel.
d1(h8) (L/d1) d2(h7) l1 l2 YK20F
3 1105SC03-0200 2.0 38 12 ●
2.0
5 1101SC05-0200 2.0 49 24 ○
3 1105SC03-0250 2.5 43 14 ●
2.5
5 1101SC05-0250 2.5 57 30 ○
3 1105SC03-0280 2.8 46 16 ●
2.8

C
5 1101SC05-0280 2.8 61 33 ○
3 1105SC03-0300 3.0 46 16 ●
3.0
5 1101SC05-0300 3.0 61 33 ○
3.1 3 1105SC03-0310 3.1 49 18 ●
3.2 3 1105SC03-0320 3.2 49 18 ●
3.3 3 1105SC03-0330 3.3 49 18 ●
3.4 3 1105SC03-0340 3.4 52 20 ●
3 1105SC03-0350 3.5 52 20 ●
3.5
5 1101SC05-0350 3.5 70 39 ○
Vollhartmetallbohrer


External · Extern


3.6 3 1105SC03-0360 3.6 52 20 ●
Solid carbide drills


3.7 3 Straight 1105SC03-0370 3.7 52 20 ●
shank
3 1105SC03-0380 3.8 55 22 ●
3.8 Zylinder-
5 schaft 1101SC05-0380 3.8 75 43 ○
3.9 3 1105SC03-0390 3.9 55 22 ○
3 1105SC03-0400 4.0 55 22 ●
4.0
5 1101SC05-0400 4.0 75 43 ○
4.1 3 1105SC03-0410 4.1 55 22 ●
3 1105SC03-0420 4.2 55 22 ●
4.2
5 1101SC05-0420 4.2 75 43 ○
4.3 3 1105SC03-0430 4.3 58 24 ●
4.4 3 1105SC03-0440 4.4 58 24 ●
3 1105SC03-0450 4.5 58 24 ●
4.5
5 1101SC05-0450 4.5 80 47 ○
4.6 3 1105SC03-0460 4.6 58 24 ●
4.7 3 1105SC03-0470 4.7 58 24 ○
3 1105SC03-0480 4.8 62 26 ●
4.8
5 1101SC05-0480 4.8 86 52 ○
4.9 3 1105SC03-0490 4.9 62 26 ●


C 84 ● ex Stock · ab Lager ○ on demand · auf Anfrage
