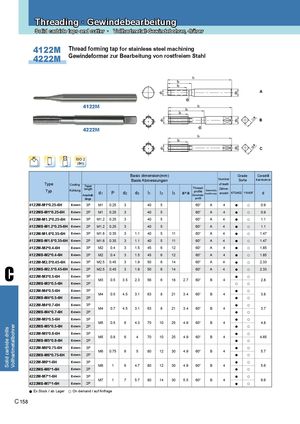

Threading · Gewindebearbeitung
Solid carbide taps and cutter · Vollhartmetall-Gewindebohrer, -fräser

4122M Thread forming tap for stainless steel machining
Gewindeformer zur Bearbeitung von rostfreiem Stahl
4222M

A

4122M
B


a
4222M


a
C
ISO 2
(6H)

Basic dimension(mm) Grade Coredrill
Number
Basis Abmessungen Sorte Kernbohrer
Type Cooling Taper
of teeth
length Thread- Zähne-
Typ Kühlung
d1 P d2 d3 l1 l2 l3 profile
a×a Gewinde-
Geometry
Ausführung anzahl KTG402 YK40F d
Anschnitt-
länge profil
4122M-M1*0.25-6H Extern 3P M1 0.25 3 40 5 60° A 4 ● ○ 0.9
4122MS-M1*0.25-6H Extern 2P M1 0.25 3 40 5 60° A 4 ● ○ 0.9
4122M-M1.2*0.25-6H Extern 3P M1.2 0.25 3 40 5 60° A 4 ● ○ 1.1
4122MS-M1.2*0.25-6H Extern 2P M1.2 0.25 3 40 5 60° A 4 ● ○ 1.1
4122M-M1.6*0.35-6H Extern 3P M1.6 0.35 3 1.1 40 5 11 60° A 4 ● ○ 1.47
4122MS-M1.6*0.35-6H Extern 2P M1.6 0.35 3 1.1 40 5 11 60° A 4 ● ○ 1.47
4122M-M2*0.4-6H Extern 3P M2 0.4 3 1.5 45 6 12 60° A 4 ● ○ 1.85
4122MS-M2*0.4-6H Extern 2P M2 0.4 3 1.5 45 6 12 60° A 4 ● ○ 1.85
4122M-M2.5*0.45-6H 3P M2.5 0.45 3 1.9 50 6 14 60° A 4 ● ○ 2.33


C
Extern
4122MS-M2.5*0.45-6H Extern 2P M2.5 0.45 3 1.9 50 6 14 60° A 4 ● ○ 2.33
4222M-M3*0.5-6H Extern 3P ● ○
M3 0.5 3.5 2.3 56 6 18 2.7 60° B 4 2.8
4222MS-M3*0.5-6H Extern 2P ○ ○
4222M-M4*0.5-6H Extern 3P ● ○
M4 0.5 4.5 3.1 63 8 21 3.4 60° B 4 3.8
4222MS-M4*0.5-6H Extern 2P ● ○
4222M-M4*0.7-6H Extern 3P ● ○
M4 0.7 4.5 3.1 63 8 21 3.4 60° B 4 3.7
4222MS-M4*0.7-6H Extern 2P ● ○
4222M-M5*0.5-6H Extern 3P ● ○
M5 0.5 6 4.3 70 10 25 4.9 60° B 4 4.8
4222MS-M5*0.5-6H ● ○
Vollhartmetallbohrer


Extern 2P
Solid carbide drills


4222M-M5*0.8-6H Extern 3P ● ○
M5 0.8 6 4 70 10 25 4.9 60° B 4 4.65
4222MS-M5*0.8-6H Extern 2P ● ○
4222M-M6*0.75-6H Extern 3P ● ○
M6 0.75 6 5 80 12 30 4.9 60° B 4 5.7
4222MS-M6*0.75-6H Extern 2P ● ○
4222M-M6*1-6H Extern 3P ● ○
M6 1 6 4.7 80 12 30 4.9 60° B 4 5.6
4222MS-M6*1-6H Extern 2P ● ○
4222M-M7*1-6H Extern 3P ● ○
M7 1 7 5.7 80 14 30 5.5 60° B 4 6.6
4222MS-M7*1-6H Extern 2P ● ○
● Ex Stock / ab Lager ○ On demand / auf Anfrage
