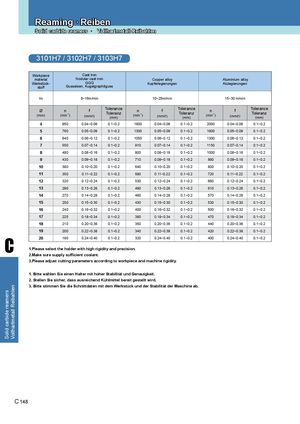

3101H7 / 3102H7 / 3103H7
| Workpiece material Werkstück- stoff | Guss | Cast iron Nodular cast iro GGG eisen, Kugelgrap | n hitguss | Copper alloy Kupferlegierunge | n | Aluminium allo Alulegierungen | y | ||
| Vc | 8~16m/min | 10~25m/min | 15~30 m/min | ||||||
| Ø (mm) | n (min -1) | f (mm/r) | Tolerance (mm) Toleranz | n (min -1) | f (mm/r) | Tolerance (mm) Toleranz | n (min -1) | f (mm/r) | Tolerance (mm) Toleranz |
| 4 | 950 | 0.04~0.06 | 0.1~0.2 | 1600 | 0.04~0.06 | 0.1~0.2 | 2000 | 0.04~0.06 | 0.1~0.2 |
| 5 | 760 | 0.05~0.09 | 0.1~0.2 | 1300 | 0.05~0.09 | 0.1~0.2 | 1600 | 0.05~0.09 | 0.1~0.2 |
| 6 | 640 | 0.06~0.12 | 0.1~0.2 | 1050 | 0.06~0.12 | 0.1~0.2 | 1300 | 0.06~0.12 | 0.1~0.2 |
| 7 | 550 | 0.07~0.14 | 0.1~0.2 | 910 | 0.07~0.14 | 0.1~0.2 | 1150 | 0.07~0.14 | 0.1~0.2 |
| 8 | 480 | 0.08~0.16 | 0.1~0.2 | 800 | 0.08~0.16 | 0.1~0.2 | 1000 | 0.08~0.16 | 0.1~0.2 |
| 9 | 430 | 0.09~0.18 | 0.1~0.2 | 710 | 0.09~0.18 | 0.1~0.2 | 890 | 0.09~0.18 | 0.1~0.2 |
| 10 | 380 | 0.10~0.20 | 0.1~0.2 | 640 | 0.10~0.20 | 0.1~0.2 | 800 | 0.10~0.20 | 0.1~0.2 |
| 11 | 350 | 0.11~0.22 | 0.1~0.2 | 580 | 0.11~0.22 | 0.1~0.2 | 720 | 0.11~0.22 | 0.1~0.2 |
| 12 | 320 | 0.12~0.24 | 0.1~0.2 | 530 | 0.12~0.24 | 0.1~0.2 | 660 | 0.12~0.24 | 0.1~0.2 |
| 13 | 290 | 0.13~0.26 | 0.1~0.2 | 490 | 0.13~0.26 | 0.1~0.2 | 610 | 0.13~0.26 | 0.1~0.2 |
| 14 | 270 | 0.14~0.28 | 0.1~0.2 | 460 | 0.14~0.28 | 0.1~0.2 | 570 | 0.14~0.28 | 0.1~0.2 |
| 15 | 250 | 0.15~0.30 | 0.1~0.2 | 430 | 0.15~0.30 | 0.1~0.2 | 530 | 0.15~0.30 | 0.1~0.2 |
| 16 | 240 | 0.16~0.32 | 0.1~0.2 | 400 | 0.16~0.32 | 0.1~0.2 | 500 | 0.16~0.32 | 0.1~0.2 |
| 17 | 225 | 0.18~0.34 | 0.1~0.2 | 380 | 0.18~0.34 | 0.1~0.2 | 470 | 0.18~0.34 | 0.1~0.2 |
| 18 | 210 | 0.20~0.36 | 0.1~0.2 | 350 | 0.20~0.36 | 0.1~0.2 | 440 | 0.20~0.36 | 0.1~0.2 |
| 19 | 200 | 0.22~0.38 | 0.1~0.2 | 340 | 0.22~0.38 | 0.1~0.2 | 420 | 0.22~0.38 | 0.1~0.2 |
| 20 | 190 | 0.24~0.40 | 0.1~0.2 | 320 | 0.24~0.40 | 0.1~0.2 | 400 | 0.24~0.40 | 0.1~0.2 |
C 19 200 0.22~0.38 0.1~0.2 340 0.22~0.38 0.1~0.2 420 0.22~0.38 0.1~0.2
1.Please select the holder with high rigidity and precision. 2.Make sure supply sufficient coolant. 3.Please adjust cutting parameters according to workpiece and machine rigidity. 1. Bitte wählen Sie einen Halter mit hoher Stabilität und Genauigkeit.
2. Stellen Sie sicher, dass ausreichend Kühlmittel bereit gestellt wird. 3. Bitte stimmen Sie die Schnittdaten mit dem Werkstück und der Stabilität der Maschine ab.
