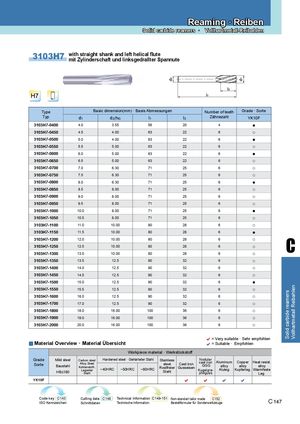

Reaming · Reiben
Solid carbide reamers · Vollhartmetall-Reibahlen


3103H7 with straight shank and left helical flute
mit Zylinderschaft und linksgedrallter Spannute


Type Basic dimension(mm) · Basis Abmessungen Number of teeth Grade · Sorte
Typ d1 d2(h6) l1 l3 Zähnezahl YK10F
3103H7-0400 4.0 3.55 56 20 4 ●
3103H7-0450 4.5 4.00 63 22 6 ○
3103H7-0500 5.0 4.00 63 22 6 ●
3103H7-0550 5.5 5.00 63 22 6 ○
3103H7-0600 6.0 5.00 63 22 6 ●
3103H7-0650 6.5 5.00 63 22 6 ○
3103H7-0700 7.0 6.30 71 25 6 ○
3103H7-0750 7.5 6.30 71 25 6 ○
3103H7-0800 8.0 6.30 71 25 6 ●
3103H7-0850 8.5 8.00 71 25 6 ○
3103H7-0900 9.0 8.00 71 25 6 ○
3103H7-0950 9.5 8.00 71 25 6 ○
3103H7-1000 10.0 8.00 71 25 6 ●
3103H7-1050 10.5 8.00 71 25 6 ○
3103H7-1100 11.0 10.00 80 28 6 ○
3103H7-1150 11.5 10.00 80 28 6 ●

C
3103H7-1200 12.0 10.00 80 28 6 ○
3103H7-1250 12.5 10.00 80 28 6 ○
3103H7-1300 13.0 10.00 80 28 6 ○
3103H7-1350 13.5 12.5 90 32 6 ○
3103H7-1400 14.0 12.5 90 32 6 ○
3103H7-1450 14.5 12.5 90 32 6 ○
3103H7-1500 15.0 12.5 90 32 6 ●
Vollhartmetall Reibahlen
3103H7-1550 15.5 12.5 90 32 6 ○ Solid carbide reamers
3103H7-1600 16.0 12.5 90 32 6 ○
3103H7-1700 17.0 12.5 90 32 6 ○
3103H7-1800 18.0 16.00 100 36 6 ○
3103H7-1900 19.0 16.00 100 36 6 ○
3103H7-2000 20.0 16.00 100 36 6 ○
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material ∙ Werkstückstoff
Grade Mild steel Carbon steel Hardened steel · Gehärteter Stahl Stainless Nodular
Alloy Steel steel Cast iron cast iron Aluminum Copper Heat resist.
Sorte Baustahl GGG alloy alloy alloy
Kohlenstoff-, Rostfreier Gusseisen
Legierter ~40HRC ~50HRC ~60HRC Kugelgra- Aluleg. Kupferleg. Warmfeste
HB≤180 Stahl phitguss
Stahl Leg.
YK10F    
Code key C143 Cutting data C148 Technical Information C149-151 Non-standart tailor made C152
ISO Kennzeichen Schnittdaten Technische Information. Bestellformular für Sonderwerkzeuge C 147
