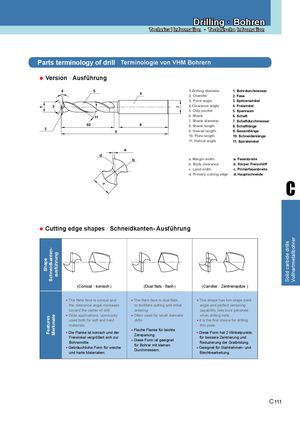

1 Shape Schneidkanten- ausführungFeaturesMerkmale 7 Solid carbide drills Vollhartmetallbohrer Drilling · Bohren Technical Information · Technische Information Parts terminology of drill · Terminologie von VHM Bohrern ● Version · Ausführung 4 5 6 1.Drilling diameter 1. Bohrdurchmesser2. Chamfer2. Fase 3. Point angle 3. Spitzenwinkel 3 4.Clearance angle 4. Freiwinkel 5. Chip pocket 5. Spanraum 11 6. Shank 6. Schaft 7. Shank diameter 7. Schaftdurchmesser 10 829 8. Shank length 8. Schaftlänge9. Overall length9. Gesamtlänge 10. Flute length 10. Schneidenlänge 11. Helical angle 11. Spiralwinkel a d b a. Margin width a. Fasenbreite b. Body clearance b. Körper Freischliff c. Land width c. Primärfasenbreite d. Primary cutting edge d. Hauptschneide c C ● Cutting edge shapes · Schneidkanten- Ausführung (Conical · konisch ) (Dual flats · flach ) (Candler · Zentrierspitze ) ● The flank face is conical and ● The flank face is dual flats, ● This shape has two-stage point the clearance angel increases to facilitate cutting and initial angle and perfect centering toward the center of drill. entering. capability, less burs generate ● Wide applications, commonly ● Often used for small diameter when drilling hole. used both for soft and hard dirlls ● It is the first choice for drilling materials. thin plate. ● Die Flanke ist konisch und derFreiwinkel vergrößert sich zurBohrermitte.● Gebräuchliche Form für weicheund harte Materialien.● Flache Flanke für leichteZerspanung.● Diese Form ist geeignetfür Bohrer mit kleinenDurchmessern.● Diese Form hat 2 Winkelpunkte,für bessere Zentrierung undReduzierung der Gratbildung.● Geeignet für Stahlrahmen- undBlechbearbeitung. C 111
