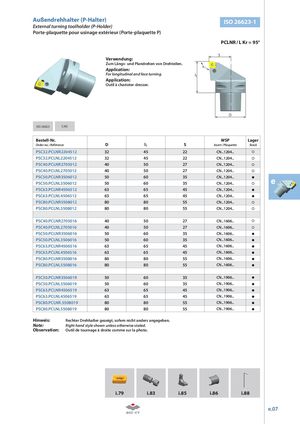

Каталог ZCC-CT оснастка - страница 188
Навигация
Каталог ZCC-CT токарная обработка
Каталог ZCC-CT сверла монолитные
Каталог ZCC-CT расточные системы
Каталог ZCC-CT фрезы монолитные
Каталог ZCC-CT фрезы со сменными пластинами
Verwendung: Zum Längs- und Plandrehen von Drehteilen.
Application: For longitudinal and face turning. l
Application: Outil à charioter-dresser.
Kr
PCLNR / L Kr = 95°
S
D
| ISO 26623 CAD | |||||
| Bestell-Nr. Order no. / Référence | D | l1 | S | WSP Insert / Plaquette | Lager Stock |
| PSC32.PCLNR2204512 | 32 | 45 | 22 | CN..1204.. | |
| PSC32.PCLNL2204512 | 32 | 45 | 22 | CN..1204.. | |
| PSC40.PCLNR2705012 | 40 | 50 | 27 | CN..1204.. | |
| PSC40.PCLNL2705012 | 40 | 50 | 27 | CN..1204.. | |
| PSC50.PCLNR3506012 | 50 | 60 | 35 | CN..1204.. | |
| PSC50.PCLNL3506012 | 50 | 60 | 35 | CN..1204.. | |
| PSC63.PCLNR4506512 | 63 | 65 | 45 | CN..1204.. | |
| PSC63.PCLNL4506512 | 63 | 65 | 45 | CN..1204.. | |
| PSC80.PCLNR5508012 | 80 | 80 | 55 | CN..1204.. | |
| PSC80.PCLNL5508012 | 80 | 80 | 55 | CN..1204.. | |
| PSC40.PCLNR2705016 | 40 | 50 | 27 | CN..1606.. | |
| PSC40.PCLNL2705016 | 40 | 50 | 27 | CN..1606.. | |
| PSC50.PCLNR3506016 | 50 | 60 | 35 | CN..1606.. | |
| PSC50.PCLNL3506016 | 50 | 60 | 35 | CN..1606.. | |
| PSC63.PCLNR4506516 | 63 | 65 | 45 | CN..1606.. | |
| PSC63.PCLNL4506516 | 63 | 65 | 45 | CN..1606.. | |
| PSC80.PCLNR5508016 | 80 | 80 | 55 | CN..1606.. | |
| PSC80.PCLNL5508016 | 80 | 80 | 55 | CN..1606.. | |
| PSC50.PCLNR3506019 | 50 | 60 | 35 | CN..1906.. | |
| PSC50.PCLNL3506019 | 50 | 60 | 35 | CN..1906.. | |
| PSC63.PCLNR4506519 | 63 | 65 | 45 | CN..1906.. | |
| PSC63.PCLNL4506519 | 63 | 65 | 45 | CN..1906.. | |
| PSC80.PCLNR.5508019 | 80 | 80 | 55 | CN..1906.. | |
| PSC80.PCLNL5508019 | 80 | 80 | 55 | CN..1906.. |
Hinweis: Rechter Drehhalter gezeigt, sofern nicht anders angegeben.
Note: Right hand style shown unless otherwise stated.
Observation: Outil de tournage à droite comme sur la photo.
