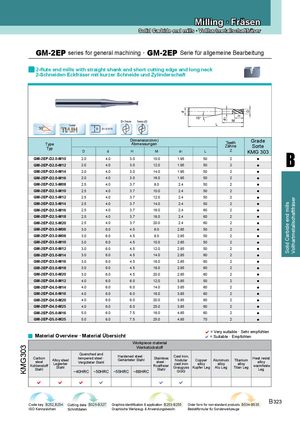

Каталог ZCC-CT фрезы монолитные - страница 83

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

GM-2EP series for general machining · GM-2EP Serie für allgemeine Bearbeitung
2-flute end mills with straight shank and short cutting edge and long neck
2-Schneiden Eckfräser mit kurzer Schneide und Zylinderschaft


D
d
H
10°


d1
D<1mm 1mm≤D M
Coated L
35o
TiAIN D 0~-0.015

Dimension(mm) Grade
Type Abmessungen Teeth
Zähne Sorte

B
Typ Z
D d H M d1 L KMG 303
GM-2EP-D2.0-M10 2.0 4.0 3.0 10.0 1.95 50 2 ●
GM-2EP-D2.0-M12 2.0 4.0 3.0 12.0 1.95 50 2 ●
GM-2EP-D2.0-M14 2.0 4.0 3.0 14.0 1.95 50 2 ●
GM-2EP-D2.0-M16 2.0 4.0 3.0 16.0 1.95 50 2 ●
GM-2EP-D2.5-M08 2.5 4.0 3.7 8.0 2.4 50 2 ●
GM-2EP-D2.5-M10 2.5 4.0 3.7 10.0 2.4 50 2 ●
GM-2EP-D2.5-M12 2.5 4.0 3.7 12.0 2.4 50 2 ●


Vollhartmetallschaftfräser
GM-2EP-D2.5-M14 2.5 4.0 3.7 14.0 2.4 50 2 ●


Solid Carbide end mills
GM-2EP-D2.5-M16 2.5 4.0 3.7 16.0 2.4 60 2 ●
GM-2EP-D2.5-M18 2.5 4.0 3.7 18.0 2.4 60 2 ●
GM-2EP-D2.5-M20 2.5 4.0 3.7 20.0 2.4 60 2 ●
GM-2EP-D3.0-M06 3.0 6.0 4.5 6.0 2.85 50 2 ●
GM-2EP-D3.0-M08 3.0 6.0 4.5 8.0 2.85 50 2 ●
GM-2EP-D3.0-M10 3.0 6.0 4.5 10.0 2.85 50 2 ●
GM-2EP-D3.0-M12 3.0 6.0 4.5 12.0 2.85 50 2 ●
GM-2EP-D3.0-M14 3.0 6.0 4.5 14.0 2.85 60 2 ●
GM-2EP-D3.0-M16 3.0 6.0 4.5 16.0 2.85 60 2 ●
GM-2EP-D3.0-M18 3.0 6.0 4.5 18.0 2.85 60 2 ●
GM-2EP-D3.0-M20 3.0 6.0 4.5 20.0 2.85 60 2 ●
GM-2EP-D4.0-M12 4.0 6.0 6.0 12.0 3.85 50 2 ●
GM-2EP-D4.0-M14 4.0 6.0 6.0 14.0 3.85 60 2 ●
GM-2EP-D4.0-M16 4.0 6.0 6.0 16.0 3.85 60 2 ●
GM-2EP-D4.0-M20 4.0 6.0 6.0 20.0 3.85 60 2 ●
GM-2EP-D4.0-M25 4.0 6.0 6.0 25.0 3.85 60 2 ●
GM-2EP-D5.0-M16 5.0 6.0 7.5 16.0 4.85 60 2 ●
GM-2EP-D5.0-M25 5.0 6.0 7.5 25.0 4.85 70 2 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG303


Werkstückstoff
Quenched and
Hardened steel · Cast iron,
Carbon tempered steel · Gehärteter Stahl Stainless Heat resist
Alloy steel Nodular Copper Aluminum Titanium
steel Legierter Vergüteter Stahl steel · cast iron alloy
Kohlenstoff Rostfreier alloy alloy alloy warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl Stahl Leg
~40HRC ~50HRC ~55HRC ~68HRC GGG

     

Code key B252,B254 Cutting data B325-B327 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 323
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
