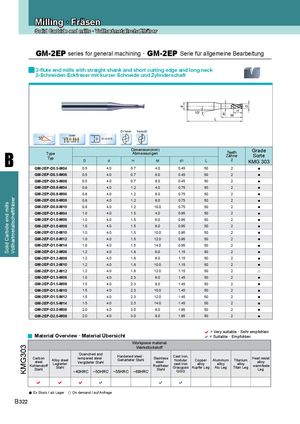

General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

GM-2EP series for general machining · GM-2EP Serie für allgemeine Bearbeitung
2-flute end mills with straight shank and short cutting edge and long neck
2-Schneiden Eckfräser mit kurzer Schneide und Zylinderschaft


D
d
H
10°


d1
M
L

D<1mm 1mm≤D
Coated
o
35
TiAIN D 0~-0.015


B
Dimension(mm) Grade
Type Abmessungen Teeth
Typ
Zähne Sorte
Z
D d H M d1 L KMG 303
GM-2EP-D0.5-M04 0.5 4.0 0.7 4.0 0.45 50 2 ●
GM-2EP-D0.5-M06 0.5 4.0 0.7 6.0 0.45 50 2 ●
GM-2EP-D0.5-M08 0.5 4.0 0.7 8.0 0.45 50 2 ●
GM-2EP-D0.8-M04 0.8 4.0 1.2 4.0 0.75 50 2 ●
GM-2EP-D0.8-M06 0.8 4.0 1.2 6.0 0.75 50 2 ●
Vollhartmetallschaftfräser


GM-2EP-D0.8-M08 0.8 4.0 1.2 8.0 0.75 50 2 ●
Solid Carbide end mills


GM-2EP-D0.8-M10 0.8 4.0 1.2 10.0 0.75 50 2 ●
GM-2EP-D1.0-M04 1.0 4.0 1.5 4.0 0.95 50 2 ●
GM-2EP-D1.0-M06 1.0 4.0 1.5 6.0 0.95 50 2 ●
GM-2EP-D1.0-M08 1.0 4.0 1.5 8.0 0.95 50 2 ●
GM-2EP-D1.0-M10 1.0 4.0 1.5 10.0 0.95 50 2 ●
GM-2EP-D1.0-M12 1.0 4.0 1.5 12.0 0.95 50 2 ●
GM-2EP-D1.0-M14 1.0 4.0 1.5 14.0 0.95 50 2 ●
GM-2EP-D1.2-M06 1.2 4.0 1.8 6.0 1.15 50 2 ●
GM-2EP-D1.2-M08 1.2 4.0 1.8 8.0 1.15 50 2 ●
GM-2EP-D1.2-M10 1.2 4.0 1.8 10.0 1.15 50 2 ●
GM-2EP-D1.2-M12 1.2 4.0 1.8 12.0 1.15 50 2 ○
GM-2EP-D1.5-M06 1.5 4.0 2.3 6.0 1.45 50 2 ●
GM-2EP-D1.5-M08 1.5 4.0 2.3 8.0 1.45 50 2 ●
GM-2EP-D1.5-M10 1.5 4.0 2.3 10.0 1.45 50 2 ●
GM-2EP-D1.5-M12 1.5 4.0 2.3 12.0 1.45 50 2 ●
GM-2EP-D1.5-M14 1.5 4.0 2.3 14.0 1.45 50 2 ●
GM-2EP-D2.0-M06 2.0 4.0 3.0 6.0 1.95 50 2 ●
GM-2EP-D2.0-M08 2.0 4.0 3.0 8.0 1.95 50 2 ●

= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG303


Werkstückstoff
Quenched and
Hardened steel · Cast iron,
Carbon tempered steel · Gehärteter Stahl Stainless Heat resist
Alloy steel Nodular Copper Aluminum Titanium
steel Legierter Vergüteter Stahl steel · cast iron alloy
Kohlenstoff Rostfreier alloy alloy alloy warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl Stahl Leg
~40HRC ~50HRC ~55HRC ~68HRC GGG

     
● Ex Stock / ab Lager ○ On demand / auf Anfrage
B 322
