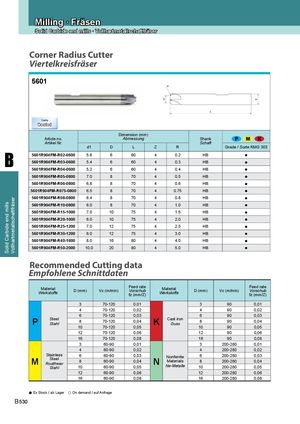

Каталог ZCC-CT фрезы монолитные - страница 290
Навигация
Каталог ZCC-CT оснастка
Каталог ZCC-CT фрезы со сменными пластинами
Каталог ZCC-CT сверла со сменными пластинами
Каталог ZCC-CT токарная обработка
Каталог ZCC-CT сверла монолитные
Corner Radius Cutter
Viertelkreisfräser
| 5601 | |||||||
| Coating Coated | |||||||
| Article no. Artikel Nr. | D | imension (m Abmessung | m) | Shank Schaft | |||
| d1 | D | L | Z | R | Grade /SorteKMG 303 | ||
| 5601R904FM-R02-0600 | 5.6 | 6 | 60 | 4 | 0.2 | HB | ● |
| 5601R904FM-R03-0600 | 5.4 | 6 | 60 | 4 | 0.3 | HB | ● |
| 5601R904FM-R04-0600 | 5.2 | 6 | 60 | 4 | 0.4 | HB | ● |
| 5601R904FM-R05-0800 | 7.0 | 8 | 70 | 4 | 0.5 | HB | ● |
| 5601R904FM-R06-0800 | 6.8 | 8 | 70 | 4 | 0.6 | HB | ● |
| 5601R904FM-R075-0800 | 6.5 | 8 | 70 | 4 | 0.75 | HB | ● |
| 5601R904FM-R08-0800 | 6.4 | 8 | 70 | 4 | 0.8 | HB | ● |
| 5601R904FM-R10-0800 | 6.0 | 8 | 70 | 4 | 1.0 | HB | ● |
| 5601R904FM-R15-1000 | 7.0 | 10 | 75 | 4 | 1.5 | HB | ● |
| 5601R904FM-R20-1000 | 6.0 | 10 | 75 | 4 | 2.0 | HB | ● |
| 5601R904FM-R25-1200 | 7.0 | 12 | 75 | 4 | 2.5 | HB | ● |
| 5601R904FM-R30-1200 | 6.0 | 12 | 75 | 4 | 3.0 | HB | ● |
| 5601R904FM-R40-1600 | 8.0 | 16 | 80 | 4 | 4.0 | HB | ● |
| 5601R904FM-R50-2000 | 10.0 | 20 | 80 | 4 | 5.0 | HB | ● |
Recommended Cutting data
Empfohlene Schnittdaten
| Material Werkstoffe | D (mm) | Vc (m/min) | Feed rate Vorschub fz (mm/Z) | W | Material erkstoffe | D (mm) | Vc (m/min) | Feed rate Vorschub fz (mm/Z) |
| 3 | 70-120 | 0,01 | 3 | 90 | 0,01 | |||
| 4 | 70-120 | 0,02 | 4 | 90 | 0,02 | |||
| 6 | 70-120 | 0,03 | 6 | 90 | 0,03 | |||
| P Steel Sthl | 8 | 70-120 | 0,04 | K | Cast iron G | 8 | 90 | 0,04 |
| a | 10 | 70-120 | 0,05 | uss | 10 | 90 | 0,05 | |
| 12 | 70-120 | 0,06 | 12 | 90 | 0,06 | |||
| 16 | 70-120 | 0,08 | 16 | 90 | 0,08 | |||
| 3 | 60-90 | 0,01 | 3 | 200-280 | 0,01 | |||
| 4 | 60-90 | 0,02 | 4 | 200-280 | 0,02 | |||
| Stainless | 6 | 60-90 | 0,03 | Nonferrite | 6 | 200-280 | 0,03 | |
| M Steel Rtfi | 8 | 60-90 | 0,04 | N | Materials | 8 | 200-280 | 0,04 |
| osreer Stahl | 10 | 60-90 | 0,05 | Ne-Metalle | 10 | 200-280 | 0,05 | |
| 12 | 60-90 | 0,06 | 12 | 200-280 | 0,06 | |||
| 16 | 60-90 | 0,08 | 16 | 200-280 | 0,08 |
