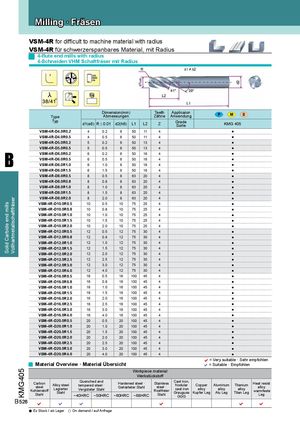

Каталог ZCC-CT фрезы монолитные - страница 286

General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
VSM-4R for difficult to machine material with radius
VSM-4R für schwerzerspanbares Material, mit Radius
4-flute end mills with radius
4-Schneiden VHM Schaftfräser mit Radius


Dimension(mm) Teeth Applicaion
Abmessungen Zähne Anwendung P M S
Type
Typ Grade
d1(e8) R±0.01 d2(h6) L1 L2 Z Sorte KMG 405
VSM-4R-D4.0R0.2 4 0.2 6 50 11 4 ●
VSM-4R-D4.0R0.5 4 0.5 6 50 11 4 ●
VSM-4R-D5.0R0.2 5 0.2 6 50 13 4 ●
VSM-4R-D5.0R0.5 5 0.5 6 50 13 4 ●

B
VSM-4R-D6.0R0.2 6 0.2 6 50 16 4 ●
VSM-4R-D6.0R0.5 6 0.5 6 50 16 4 ●
VSM-4R-D6.0R1.0 6 1.0 6 50 16 4 ●
VSM-4R-D6.0R1.5 6 1.5 6 50 16 4 ●
VSM-4R-D8.0R0.5 8 0.5 8 63 20 4 ●
VSM-4R-D8.0R0.8 8 0.8 8 63 20 4 ●
VSM-4R-D8.0R1.0 8 1.0 8 63 20 4 ●
VSM-4R-D8.0R1.5 8 1.5 8 63 20 4 ●
VSM-4R-D8.0R2.0 8 2.0 8 63 20 4 ●
Vollhartmetallschaftfräser


VSM-4R-D10.0R0.5 10 0.5 10 75 25 4 ●
Solid Carbide end mills


VSM-4R-D10.0R0.8 10 0.8 10 75 25 4 ●
VSM-4R-D10.0R1.0 10 1.0 10 75 25 4 ●
VSM-4R-D10.0R1.5 10 1.5 10 75 25 4 ●
VSM-4R-D10.0R2.0 10 2.0 10 75 25 4 ●
VSM-4R-D12.0R0.5 12 0.5 12 75 30 4 ●
VSM-4R-D12.0R0.8 12 0.8 12 75 30 4 ●
VSM-4R-D12.0R1.0 12 1.0 12 75 30 4 ●
VSM-4R-D12.0R1.5 12 1.5 12 75 30 4 ●
VSM-4R-D12.0R2.0 12 2.0 12 75 30 4 ●
VSM-4R-D12.0R2.5 12 2.5 12 75 30 4 ●
VSM-4R-D12.0R3.0 12 3.0 12 75 30 4 ●
VSM-4R-D12.0R4.0 12 4.0 12 75 30 4 ●
VSM-4R-D16.0R0.5 16 0.5 16 100 45 4 ●
VSM-4R-D16.0R0.8 16 0.8 16 100 45 4 ●
VSM-4R-D16.0R1.0 16 1.0 16 100 45 4 ●
VSM-4R-D16.0R1.5 16 1.5 16 100 45 4 ●
VSM-4R-D16.0R2.0 16 2.0 16 100 45 4 ●
VSM-4R-D16.0R2.5 16 2.5 16 100 45 4 ●
VSM-4R-D16.0R3.0 16 3.0 16 100 45 4 ●
VSM-4R-D16.0R4.0 16 4.0 16 100 45 4 ●
VSM-4R-D20.0R0.5 20 0.5 20 100 45 4 ●
VSM-4R-D20.0R1.0 20 1.0 20 100 45 4 ●
VSM-4R-D20.0R1.5 20 1.5 20 100 45 4 ●
VSM-4R-D20.0R2.0 20 2.0 20 100 45 4 ●
VSM-4R-D20.0R2.5 20 2.5 20 100 45 4 ●
VSM-4R-D20.0R3.0 20 3.0 20 100 45 4 ●
VSM-4R-D20.0R4.0 20 4.0 20 100 45 4 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
KMG405


Workpiece material
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
B 526      
● Ex Stock / ab Lager ○ On demand / auf Anfrage
