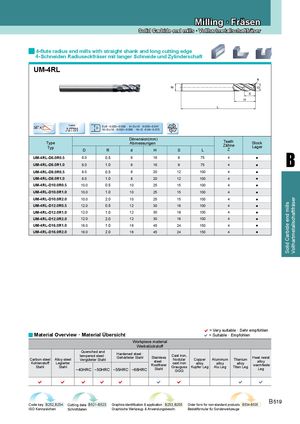

Каталог ZCC-CT фрезы монолитные - страница 279

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

4-flute radius end mills with straight shank and long cutting edge
4- Schneiden Radiuseckfräser mit langer Schneide und Zylinderschaft
UM-4RL
R


D
d
S
H
L


Coated
38o,41o D≤6 -0.020~-0.038 6<D≤10 -0.025~-0.047
D
AITiN 10<D≤18 -0.032~-0.059 18<D -0.04~-0.073

Dimension(mm)
Type Abmessungen Teeth Stock
Zähne Lager
Typ

B
D R d H S L Z
UM-4RL-D6.0R0.5 6.0 0.5 6 16 9 75 4 ●
UM-4RL-D6.0R1.0 6.0 1.0 6 16 9 75 4 ●
UM-4RL-D8.0R0.5 8.0 0.5 8 20 12 100 4 ●
UM-4RL-D8.0R1.0 8.0 1.0 8 20 12 100 4 ●
UM-4RL-D10.0R0.5 10.0 0.5 10 25 15 100 4 ●
UM-4RL-D10.0R1.0 10.0 1.0 10 25 15 100 4 ●
UM-4RL-D10.0R2.0 10.0 2.0 10 25 15 100 4 ●


Vollhartmetallschaftfräser
Solid Carbide end mills
UM-4RL-D12.0R0.5 12.0 0.5 12 30 18 100 4 ●
UM-4RL-D12.0R1.0 12.0 1.0 12 30 18 100 4 ●
UM-4RL-D12.0R2.0 12.0 2.0 12 30 18 100 4 ●
UM-4RL-D16.0R1.0 16.0 1.0 16 45 24 150 4 ●
UM-4RL-D16.0R2.0 16.0 2.0 16 45 24 150 4 ●


= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
Werkstückstoff
Quenched and
Hardened steel ·
tempered steel · Cast iron,
Gehärteter Stahl Stainless Heat resist
Carbon steel Alloy steel Vergüteter Stahl Nodular Copper Aluminum Titanium
Kohlenstoff Legierter steel · alloy
cast iron alloy alloy alloy
Rostfreier warmfeste
Stahl Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
~40HRC ~50HRC ~55HRC ~68HRC Stahl Leg
GGG

        

Code key B252,B254 Cutting data B521-B523 Graphics identification & application B253,B255 Order form for non-standard products B534-B535
B 519
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
