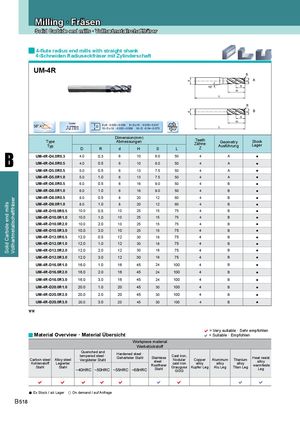

Каталог ZCC-CT фрезы монолитные - страница 278
Навигация
Каталог ZCC-CT оснастка
Каталог ZCC-CT фрезы со сменными пластинами
Каталог ZCC-CT сверла со сменными пластинами
Каталог ZCC-CT токарная обработка
Каталог ZCC-CT сверла монолитные
General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser
4-flute radius end mills with straight shank
4- Schneiden Radiuseckfräser mit Zylinderschaft
UM-4R R
A
D
d
10° S
H
L
R
B
D
d
S
H
Coated
38o,41o D≤6 -0.020~-0.038 6<D≤10 -0.025~-0.047
D
AITiN 10<D≤18 -0.032~-0.059 18<D -0.04~-0.073 L
Dimension(mm)
Type Abmessungen Teeth Stock
Zähne Geometry
Typ Ausführung Lager
Z
B
D R d H S L
UM-4R-D4.0R0.3 4.0 0.3 6 10 6.0 50 4 A ●
UM-4R-D4.0R0.5 4.0 0.5 6 10 6.0 50 4 A ●
UM-4R-D5.0R0.5 5.0 0.5 6 13 7.5 50 4 A ●
UM-4R-D5.0R1.0 5.0 1.0 6 13 7.5 50 4 A ●
UM-4R-D6.0R0.5 6.0 0.5 6 16 9.0 50 4 B ●
UM-4R-D6.0R1.0 6.0 1.0 6 16 9.0 50 4 B ●
UM-4R-D8.0R0.5 8.0 0.5 8 20 12 60 4 B ●
Vollhartmetallschaftfräser
UM-4R-D8.0R1.0 8.0 1.0 8 20 12 60 4 B ●
Solid Carbide end mills
UM-4R-D10.0R0.5 10.0 0.5 10 25 15 75 4 B ●
UM-4R-D10.0R1.0 10.0 1.0 10 25 15 75 4 B ●
UM-4R-D10.0R2.0 10.0 2.0 10 25 15 75 4 B ●
UM-4R-D10.0R3.0 10.0 3.0 10 25 15 75 4 B ●
UM-4R-D12.0R0.5 12.0 0.5 12 30 18 75 4 B ●
UM-4R-D12.0R1.0 12.0 1.0 12 30 18 75 4 B ●
UM-4R-D12.0R2.0 12.0 2.0 12 30 18 75 4 B ●
UM-4R-D12.0R3.0 12.0 3.0 12 30 18 75 4 B ●
UM-4R-D16.0R1.0 16.0 1.0 16 45 24 100 4 B ●
UM-4R-D16.0R2.0 16.0 2.0 16 45 24 100 4 B ●
UM-4R-D16.0R3.0 16.0 3.0 16 45 24 100 4 B ●
UM-4R-D20.0R1.0 20.0 1.0 20 45 30 100 4 B ●
UM-4R-D20.0R2.0 20.0 2.0 20 45 30 100 4 B ●
UM-4R-D20.0R3.0 20.0 3.0 20 45 30 100 4 B ●
ww
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
Werkstückstoff
Quenched and
Hardened steel ·
tempered steel · Cast iron,
Gehärteter Stahl Stainless Heat resist
Carbon steel Alloy steel Vergüteter Stahl Nodular Copper Aluminum Titanium
steel · alloy
Kohlenstoff Legierter cast iron alloy alloy alloy
Rostfreier warmfeste
Stahl Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
~40HRC ~50HRC ~55HRC ~68HRC Stahl Leg
GGG
● Ex Stock / ab Lager ○ On demand / auf Anfrage
B 518
