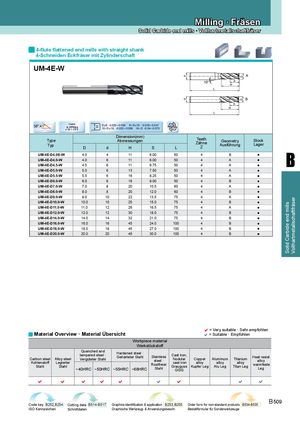

4-flute flattened end mills with straight shank

4-Schneiden Eckfräser mit Zylinderschaft

UM-4E-W

10° L

L

S H

S H

A

B

38 o,41 o Coat AITed iND≤6 -0.02 10 D0~-0.038 6 -0.032~-0.059 18-0.025~-0.047 D -0.04~-0.073
TypeDimension(m Abmessungem) nTeeth ZähneGeometryStock
TAusführunLager
ypDdHSLZg
UM-4E-D4.0S-W4.04116.00504B●
UM-4E-D4.0-W4.06116.00504A●
UM-4E-D4.5-W4.56116.75504A●
UM-4E-D5.0-W5.06137.50504A●
UM-4E-D5.5-W5.56168.25504A●
UM-4E-D6.0-W6.06169.00504B●
UM-4E-D7.0-W7.082010.5604A●
UM-4E-D8.0-W8.082012.0604B●
UM-4E-D9.0-W9.0102213.5754A●
UM-4E-D10.0-W10.0102515.0754B●
UM-4E-D11.0-W11.0122616.5754A●
UM-4E-D12.0-W12.0123018.0754B●
UM-4E-D14.0-W14.0143221.0754B●
UM-4E-D16.0-W16.0164524.01004B●
UM-4E-D18.0-W18.0184527.01004B●
UM-4E-D20.0-W20.0204530.01004B●

= Very suitable · Sehr empfohlen

Material Overview · Material Übersicht = Suitable · Empfohlen

Carbon steel Kohlenstoff StahlAlloy steel Legierter StahlQuench tempered ~40HRC Vergüteted and steel · ~50HRC er StahlHardene ~55HRC GehärtetWorkpiec d steel · ~68HRC Werkst er Stahle material Stainless steel · ückstoff Rostfreier StahlCast iron, Nodular cast iron Grauguss GGGCopper alloy Kupfer LegAluminum alloy Alu LegTitanium alloy Titan LegHeat resist alloy warmfeste Leg
