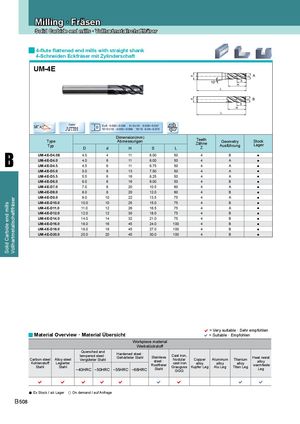

4-flute flattened end mills with straight shank
4-Schneiden Eckfräser mit Zylinderschaft
UM-4E
| C | 1 d d | 0° H L S H L S | A D B D | |||||
| 38 o,41 o o AI | ated iN | D≤6 -0.020~ 10 D | -0.038 6 032~-0059 18 | -0.025~-0.047 D -004~-0073 | ||||
| D | imension(m .. | m) .. | ||||||
| Type | Abmessunge | n | Teeth Zähne | Geometry Afüh | Stock Laer | |||
| Typ | D | d | H | S | L | Z | usrung | g |
| UM-4E-D4.0S | 4.0 | 4 | 11 | 6.00 | 50 | 4 | B | ● |
| UM-4E-D4.0 | 4.0 | 6 | 11 | 6.00 | 50 | 4 | A | ● |
| UM-4E-D4.5 | 4.5 | 6 | 11 | 6.75 | 50 | 4 | A | ● |
| UM-4E-D5.0 | 5.0 | 6 | 13 | 7.50 | 50 | 4 | A | ● |
| UM-4E-D5.5 | 5.5 | 6 | 16 | 8.25 | 50 | 4 | A | ● |
| UM-4E-D6.0 | 6.0 | 6 | 16 | 9.00 | 50 | 4 | B | ● |
| UM-4E-D7.0 | 7.0 | 8 | 20 | 10.5 | 60 | 4 | A | ● |
| UM-4E-D8.0 | 8.0 | 8 | 20 | 12.0 | 60 | 4 | B | ● |
| UM-4E-D9.0 | 9.0 | 10 | 22 | 13.5 | 75 | 4 | A | ● |
| UM-4E-D10.0 | 10.0 | 10 | 25 | 15.0 | 75 | 4 | B | ● |
| UM-4E-D11.0 | 11.0 | 12 | 26 | 16.5 | 75 | 4 | A | ● |
| UM-4E-D12.0 | 12.0 | 12 | 30 | 18.0 | 75 | 4 | B | ● |
| UM-4E-D14.0 | 14.0 | 14 | 32 | 21.0 | 75 | 4 | B | ● |
| UM-4E-D16.0 | 16.0 | 16 | 45 | 24.0 | 100 | 4 | B | ● |
| UM-4E-D18.0 | 18.0 | 18 | 45 | 27.0 | 100 | 4 | B | ● |
| UM-4E-D20.0 | 20.0 | 20 | 45 | 30.0 | 100 | 4 | B | ● |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
