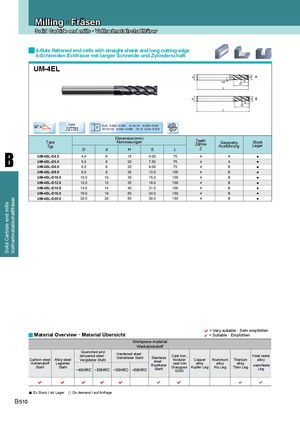

4-flute flattened end mills with straight shank and long cutting edge
4- Schneiden Eckfräser mit langer Schneide und Zylinderschaft
UM-4EL
| C | d | d d | 10° H L S H L | A D B S D | |||||
| 38 o,41 o | oa AIT | e iN | D≤6 -0.020 10 D | ~-0.038 6 0.032~-0.059 18 | -0.025~-0.047 D -0.04~-0.073 | ||||
| Type T | D | imension(m Abmessunge | m) n | Teeth Zähne | Geometry Ausführung | Stock Lager | |||
| yp | D | d | H | S | L | Z | |||
| UM-4EL-D4.0 | 4.0 | 6 | 15 | 6.00 | 75 | 4 | A | ● | |
| UM-4EL-D5.0 | 5.0 | 6 | 20 | 7.50 | 75 | 4 | A | ● | |
| UM-4EL-D6.0 | 6.0 | 6 | 20 | 9.00 | 75 | 4 | B | ● | |
| UM-4EL-D8.0 | 8.0 | 8 | 25 | 12.0 | 100 | 4 | B | ● | |
| UM-4EL-D10.0 | 10.0 | 10 | 30 | 15.0 | 100 | 4 | B | ● | |
| UM-4EL-D12.0 | 12.0 | 12 | 35 | 18.0 | 100 | 4 | B | ● | |
| UM-4EL-D14.0 | 14.0 | 14 | 40 | 21.0 | 100 | 4 | B | ● | |
| UM-4EL-D16.0 | 16.0 | 16 | 50 | 24.0 | 150 | 4 | B | ● | |
| UM-4EL-D20.0 | 20.0 | 20 | 55 | 30.0 | 150 | 4 | B | ● |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempered ~40HRC Vergütet | ed and steel · ~50HRC er Stahl | Hardene ~55HRC Gehärtet | Workpiec d steel · ~68HRC Werkst er Stahl | e material Stainless steel · ückstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | | | | |
