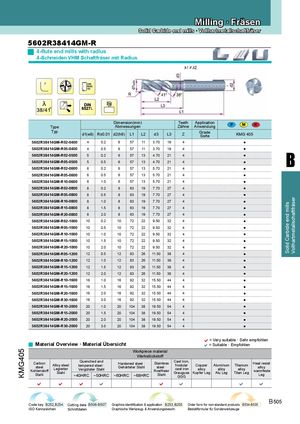

Каталог ZCC-CT фрезы монолитные - страница 265

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser
5602R38414GM-R
4-flute end mills with radius
4-Schneiden VHM Schaftfräser mit Radius


B


L

Dimension(mm) Teeth Application P M K
Type Abmessungen Zähne Anwendung
Typ Grade
d1(e8) R±0.01 d2(h6) L1 L2 d3 L3 Z Sorte KMG 405
5602R38414GM-R02-0400 4 0.2 6 57 11 3.70 19 4 ●


B
5602R38414GM-R05-0400 4 0.5 6 57 11 3.70 19 4 ●
5602R38414GM-R02-0500 5 0.2 6 57 13 4.70 21 4 ●
5602R38414GM-R05-0500 5 0.5 6 57 13 4.70 21 4 ●
5602R38414GM-R02-0600 6 0.2 6 57 13 5.70 21 4 ●
5602R38414GM-R05-0600 6 0.5 6 57 13 5.70 21 4 ●
5602R38414GM-R10-0600 6 1.0 6 57 13 5.70 21 4 ●
5602R38414GM-R02-0800 8 0.2 8 63 19 7.70 27 4 ●
5602R38414GM-R05-0800 8 0.5 8 63 19 7.70 27 4 ●


Vollhartmetallschaftfräser
5602R38414GM-R10-0800 8 1.0 8 63 19 7.70 27 4 ●


Solid Carbide end mills
5602R38414GM-R15-0800 8 1.5 8 63 19 7.70 27 4 ●
5602R38414GM-R20-0800 8 2.0 8 63 19 7.70 27 4 ●
5602R38414GM-R02-1000 10 0.2 10 72 22 9.50 32 4 ●
5602R38414GM-R05-1000 10 0.5 10 72 22 9.50 32 4 ●
5602R38414GM-R10-1000 10 1.0 10 72 22 9.50 32 4 ●
5602R38414GM-R15-1000 10 1.5 10 72 22 9.50 32 4 ●
5602R38414GM-R20-1000 10 2.0 10 72 22 9.50 32 4 ●
5602R38414GM-R05-1200 12 0.5 12 83 26 11.50 38 4 ●
5602R38414GM-R10-1200 12 1.0 12 83 26 11.50 38 4 ●
5602R38414GM-R15-1200 12 1.5 12 83 26 11.50 38 4 ●
5602R38414GM-R20-1200 12 2.0 12 83 26 11.50 38 4 ●
5602R38414GM-R10-1600 16 1.0 16 92 32 15.50 44 4 ●
5602R38414GM-R15-1600 16 1.5 16 92 32 15.50 44 4 ●
5602R38414GM-R20-1600 16 2.0 16 92 32 15.50 44 4 ●
5602R38414GM-R30-1600 16 3.0 16 92 32 15.50 44 4 ●
5602R38414GM-R10-2000 20 1.0 20 104 38 19.50 54 4 ●
5602R38414GM-R15-2000 20 1.5 20 104 38 19.50 54 4 ●
5602R38414GM-R20-2000 20 2.0 20 104 38 19.50 54 4 ●
5602R38414GM-R30-2000 20 3.0 20 104 38 19.50 54 4 ●

= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
KMG405


Workpiece material
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
       
Code key B252,B254 Cutting data B506-B507 Graphics identification & application B253,B255 Order form for non-standard products B534-B535
B 505
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
