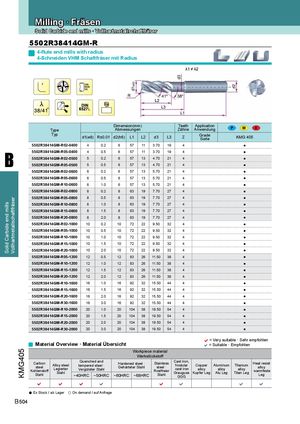

Каталог ZCC-CT фрезы монолитные - страница 264

Solid Carbide end mills Vollhartmetallschaftfräser KMG405 MGeinleliranl gTur·nFingrä/Asllgeenmeine Drehbearbeitung, ISO Kennzeichnung Solid Carbide end mills · Vollhartmetallschaftfräser 5502R38414GM-R 4-flute end mills with radius 4-Schneiden VHM Schaftfräser mit Radius B L Type Dimension(mm)Abmessungen Teeth ApplicationZähneAnwendungP M K Typ d1(e8) R±0.01 d2(h6) L1 L2 d3 L3 Z GradeSorte KMG 405 5502R38414GM-R02-0400 4 0.2 6 57 11 3.70 19 4 ● B 5502R38414GM-R05-0400 4 0.5 6 57 11 3.70 19 45502R38414GM-R02-050050.2657134.702145502R38414GM-R05-050050.5657134.70214●●● 5502R38414GM-R02-0600 6 0.2 6 57 13 5.70 21 4 ● 5502R38414GM-R05-0600 6 0.5 6 57 13 5.70 21 4 ● 5502R38414GM-R10-0600 6 1.0 6 57 13 5.70 21 4 ● 5502R38414GM-R02-0800 8 0.2 8 63 19 7.70 27 4 ● 5502R38414GM-R05-0800 8 0.5 8 63 19 7.70 27 4 ● 5502R38414GM-R10-0800 8 1.0 8 63 19 7.70 27 4 ● 5502R38414GM-R15-0800 8 1.5 8 63 19 7.70 27 4 ● 5502R38414GM-R20-0800 8 2.0 8 63 19 7.70 27 4 ● 5502R38414GM-R02-1000 10 0.2 10 72 22 9.50 32 4 ● 5502R38414GM-R05-1000 10 0.5 10 72 22 9.50 32 4 ● 5502R38414GM-R10-1000 10 1.0 10 72 22 9.50 32 4 ● 5502R38414GM-R15-1000 10 1.5 10 72 22 9.50 32 4 ● 5502R38414GM-R20-1000 10 2.0 10 72 22 9.50 32 4 ● 5502R38414GM-R05-1200 12 0.5 12 83 26 11.50 38 4 ● 5502R38414GM-R10-1200 12 1.0 12 83 26 11.50 38 4 ● 5502R38414GM-R15-1200 12 1.5 12 83 26 11.50 38 4 ● 5502R38414GM-R20-1200 12 2.0 12 83 26 11.50 38 4 ● 5502R38414GM-R10-1600 16 1.0 16 92 32 15.50 44 4 ● 5502R38414GM-R15-1600 16 1.5 16 92 32 15.50 44 4 ● 5502R38414GM-R20-1600 16 2.0 16 92 32 15.50 44 4 ● 5502R38414GM-R30-1600 16 3.0 16 92 32 15.50 44 4 ● 5502R38414GM-R10-2000 20 1.0 20 104 38 19.50 54 4 ● 5502R38414GM-R15-2000 20 1.5 20 104 38 19.50 54 4 ● 5502R38414GM-R20-2000 20 2.0 20 104 38 19.50 54 4 ● 5502R38414GM-R30-2000 20 3.0 20 104 38 19.50 54 4 ● = Very suitable · Sehr empfohlen   Material Overview · Material Übersicht = Suitable · Empfohlen Workpiece material Werkstückstoff CarbonsteelKohlenstoffStahlAlloy steelLegierterStahlQuenched andtempered steel ·Vergüteter Stahl~40HRC~50HRCHardened steel ·Gehärteter Stahl~60HRC~68HRCStainlesssteel ·RostfreierStahlCast iron,NodularCopperAluminumcast ironalloyalloyGraugussKupfer LegAlu LegGGGTitaniumalloyTitan LegHeat resistalloywarmfesteLeg         ● Ex Stock / ab Lager ○ On demand / auf Anfrage B 504
