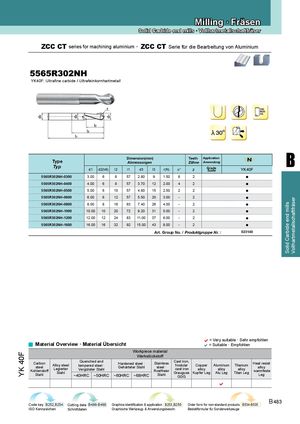

ZCC CT series for machining aluminium · ZCC CT Serie für die Bearbeitung von Aluminium
YK40F: Ultrafine carbide / Ultrafeinkornhartmetall
B
| Type | Dime Abm | nsion(m essunge | m) n | Teeth Zähne | Application Anwendung | N | |||||
| Typ | Gd | ||||||||||
| d1 | d2(h6) | l2 | l1 | d3 | l3 | r(f8) | α° | z | rae Sorte | YK40F | |
| 5565R302NH-0300 | 3.00 | 6 | 6 | 57 | 2.80 | 9 | 1.50 | 6 | 2 | ● | |
| 5565R302NH-0400 | 4.00 | 6 | 8 | 57 | 3.70 | 12 | 2.00 | 4 | 2 | ● | |
| 5565R302NH-0500 | 5.00 | 6 | 10 | 57 | 4.60 | 15 | 2.50 | 2 | 2 | ● | |
| 5565R302NH-0600 | 6.00 | 6 | 12 | 57 | 5.50 | 20 | 3.00 | - | 2 | ● | |
| 5565R302NH-0800 | 8.00 | 8 | 16 | 63 | 7.40 | 26 | 4.00 | - | 2 | ● | |
| 5565R302NH-1000 | 10.00 | 10 | 20 | 72 | 9.20 | 31 | 5.00 | - | 2 | ● | |
| 5565R302NH-1200 | 12.00 | 12 | 24 | 83 | 11.00 | 37 | 6.00 | - | 2 | ● | |
| 5565R302NH-1600 | 16.00 | 16 | 32 | 92 | 15.00 | 43 | 8.00 | - | 2 | ● | |
| Art | . Group | No. / | Produktg | ruppe Nr. : | 023140 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quenc temper ~40HRC Vergüte | hed and ed steel · ~50HRC ter Stahl | Hardene ~60HRC Gehärtet | Workpiece d steel · ~68HRC Werkstü er Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | |||||||||||
| Code key B2 ISO Kennzeic | 52,B254 C hen S | utting data B chnittdaten | 486-B488 | Graphics identi Graphische W | ification & app erkzeug- & An | i lication B253 wendungsbes | i,B255 O chr. B | rder form for no estellformular fü | n-standard pro r Sonderwerkz | ducts B534- euge | B B535 |
