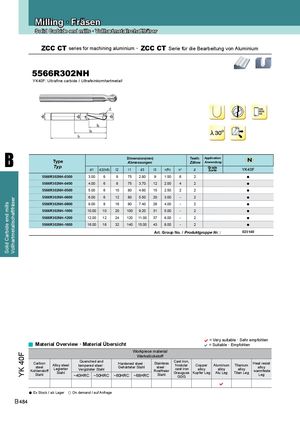

ZCC CT series for machining aluminium · ZCC CT Serie für die Bearbeitung von Aluminium
YK40F: Ultrafine carbide / Ultrafeinkornhartmetall
B
| Type | Dime Abm | nsion(m essunge | m) n | Teeth Zähne | Application Anwendung | N | |||||
| Typ | d1 | d2(h6) | l2 | l1 | d3 | l3 | r(f8) | α° | z | Grade Sorte | YK40F |
| 5566R302NH-0300 | 3.00 | 6 | 6 | 75 | 2.80 | 9 | 1.50 | 6 | 2 | ● | |
| 5566R302NH-0400 | 4.00 | 6 | 8 | 75 | 3.70 | 12 | 2.00 | 4 | 2 | ● | |
| 5566R302NH-0500 | 5.00 | 6 | 10 | 80 | 4.60 | 15 | 2.50 | 2 | 2 | ● | |
| 5566R302NH-0600 | 6.00 | 6 | 12 | 80 | 5.50 | 20 | 3.00 | - | 2 | ● | |
| 5566R302NH-0800 | 8.00 | 8 | 16 | 90 | 7.40 | 26 | 4.00 | - | 2 | ● | |
| 5566R302NH-1000 | 10.00 | 10 | 20 | 100 | 9.20 | 31 | 5.00 | - | 2 | ● | |
| 5566R302NH-1200 | 12.00 | 12 | 24 | 120 | 11.00 | 37 | 6.00 | - | 2 | ● | |
| 5566R302NH-1600 | 16.00 | 16 | 32 | 140 | 15.00 | 43 | 8.00 | - | 2 | ● | |
| Art. | Group | No. / P | roduktgr | uppe Nr. : | 023140 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
Werkstückstoff
Carbon Quenched and Stainless Cast iron, Heat resist
| Alloy steel | tempered steel · | Hardened steel · | Nodular | Copper | Aluminum | Titanium | ||||||
| steel | Legierter | Gehärteter Stahl | steel · | cast iron | alloy | alloy | alloy | alloy | ||||
| Kohlenstoff | Vergüteter Stahl | Rostfreier | ||||||||||
| Stahl | Stahl | Stahl | Grauguss | Kupfer Leg | Alu Leg | Titan Leg warmfeste Leg |
~40HRC ~50HRC ~60HRC ~68HRC GGG
