General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung

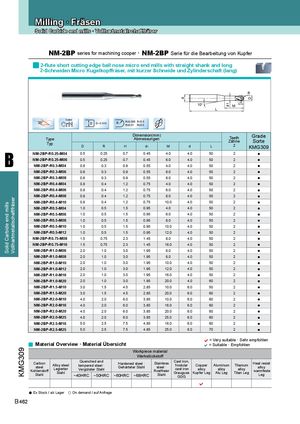

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

NM-2BP series for machining cooper · NM-2BP Serie für die Bearbeitung von Kupfer
2-flute short cutting edge ball nose micro end mills with straight shank and long
2-Schneiden Micro Kugelkopffräser, mit kurzer Schneide und Zylinderschaft (lang)

R


D
d
H
10°


d1
M
L
Coated
35o R±0.005 R<0.5
CrN D 0~-0.015 R
R±0.01 R≥0.5

Dimension(mm) Grade
Type Abmessungen Teeth
Typ
Zähne Sorte
Z
D R H d1 M d L KMG309

B
NM-2BP-R0.25-M04 0.5 0.25 0.7 0.45 4.0 4.0 50 2 ●
NM-2BP-R0.25-M06 0.5 0.25 0.7 0.45 6.0 4.0 50 2 ●
NM-2BP-R0.3-M04 0.6 0.3 0.9 0.55 4.0 4.0 50 2 ●
NM-2BP-R0.3-M06 0.6 0.3 0.9 0.55 6.0 4.0 50 2 ●
NM-2BP-R0.3-M08 0.6 0.3 0.9 0.55 8.0 4.0 50 2 ●
NM-2BP-R0.4-M04 0.8 0.4 1.2 0.75 4.0 4.0 50 2 ●
NM-2BP-R0.4-M06 0.8 0.4 1.2 0.75 6.0 4.0 50 2 ●
NM-2BP-R0.4-M08 0.8 0.4 1.2 0.75 8.0 4.0 50 2 ●
Vollhartmetallschaftfräser


NM-2BP-R0.4-M10 0.8 0.4 1.2 0.75 10.0 4.0 50 2 ●
Solid Carbide end mills


NM-2BP-R0.5-M04 1.0 0.5 1.5 0.95 4.0 4.0 50 2 ●
NM-2BP-R0.5-M06 1.0 0.5 1.5 0.95 6.0 4.0 50 2 ●
NM-2BP-R0.5-M08 1.0 0.5 1.5 0.95 8.0 4.0 50 2 ●
NM-2BP-R0.5-M10 1.0 0.5 1.5 0.95 10.0 4.0 50 2 ●
NM-2BP-R0.5-M12 1.0 0.5 1.5 0.95 12.0 4.0 50 2 ●
NM-2BP-R0.75-M08 1.5 0.75 2.3 1.45 8.0 4.0 50 2 ●
NM-2BP-R0.75-M16 1.5 0.75 2.3 1.45 16.0 4.0 50 2 ●
NM-2BP-R1.0-M06 2.0 1.0 3.0 1.95 6.0 4.0 50 2 ●
NM-2BP-R1.0-M08 2.0 1.0 3.0 1.95 8.0 4.0 50 2 ●
NM-2BP-R1.0-M10 2.0 1.0 3.0 1.95 10.0 4.0 50 2 ●
NM-2BP-R1.0-M12 2.0 1.0 3.0 1.95 12.0 4.0 50 2 ●
NM-2BP-R1.0-M16 2.0 1.0 3.0 1.95 16.0 4.0 50 2 ●
NM-2BP-R1.0-M20 2.0 1.0 3.0 1.95 20.0 4.0 60 2 ●
NM-2BP-R1.5-M10 3.0 1.5 4.5 2.85 10.0 6.0 50 2 ●
NM-2BP-R1.5-M20 3.0 1.5 4.5 2.85 20.0 6.0 60 2 ●
NM-2BP-R2.0-M10 4.0 2.0 6.0 3.85 10.0 6.0 60 2 ●
NM-2BP-R2.0-M16 4.0 2.0 6.0 3.85 16.0 6.0 60 2 ●
NM-2BP-R2.0-M20 4.0 2.0 6.0 3.85 20.0 6.0 60 2 ●
NM-2BP-R2.0-M25 4.0 2.0 6.0 3.85 25.0 6.0 60 2 ●
NM-2BP-R2.5-M16 5.0 2.5 7.5 4.85 16.0 6.0 60 2 ●
NM-2BP-R2.5-M25 5.0 2.5 7.5 4.85 25.0 6.0 70 2 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
KMG309


Workpiece material
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG

● Ex Stock / ab Lager ○ On demand / auf Anfrage
