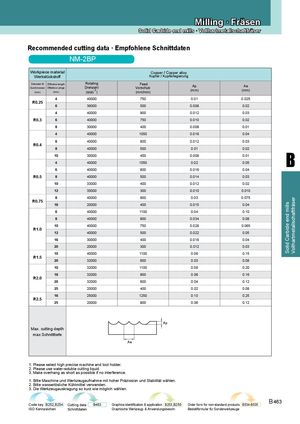

Recommended cutting data · Empfohlene Schnittdaten
NM-2BP
| Workpiec Diameter Ø Werkst | e material Effti lnth ückstoff | Rotating | Copper/ Copper Feed Kupfer / Kupferleg | alloy ierung | |
| (mm) Durchmesser | ecve eg (mm) Effektive Länge | (min-1) Drehzahl | (mm/min) Vorschub | Ap (mm) | Ae (mm) |
| R0.25 | 4 | 40000 | 750 | 0.01 | 0.025 |
| 6 | 36000 | 500 | 0.008 | 0.02 | |
| 4 | 40000 | 900 | 0.012 | 0.03 | |
| R0.3 | 6 | 40000 | 750 | 0.010 | 0.02 |
| 8 | 30000 | 400 | 0.008 | 0.01 | |
| 4 | 40000 | 1050 | 0.016 | 0.04 | |
| R04 | 6 | 40000 | 800 | 0.012 | 0.03 |
| . | 8 | 40000 | 500 | 0.01 | 0.02 |
| 10 | 30000 | 400 | 0.008 | 0.01 | |
| 4 | 40000 | 1050 | 0.02 | 0.05 | |
| 6 | 40000 | 800 | 0.016 | 0.04 | |
| R0.5 | 8 | 40000 | 500 | 0.014 | 0.03 |
| 10 | 33000 | 400 | 0.012 | 0.02 | |
| 12 | 35000 | 300 | 0.010 | 0.010 | |
| R075 | 8 | 40000 | 900 | 0.03 | 0.075 |
| . | 16 | 20000 | 400 | 0.015 | 0.04 |
| 6 | 40000 | 1100 | 0.04 | 0.10 | |
| 8 | 40000 | 900 | 0.034 | 0.08 | |
| R10 | 10 | 40000 | 750 | 0.028 | 0.065 |
| . | 12 | 40000 | 500 | 0.022 | 0.05 |
| 16 | 30000 | 400 | 0.018 | 0.04 | |
| 20 | 20000 | 300 | 0.012 | 0.03 | |
| R15 | 10 | 40000 | 1100 | 0.06 | 0.15 |
| . | 20 | 32000 | 600 | 0.03 | 0.08 |
| 10 | 32000 | 1100 | 0.08 | 0.20 | |
| R20 | 16 | 32000 | 900 | 0.06 | 0.16 |
| . | 20 | 32000 | 600 | 0.04 | 0.12 |
| 25 | 20000 | 400 | 0.02 | 0.08 | |
| R25 | 16 | 25000 | 1250 | 0.10 | 0.25 |
| . | 25 | 20000 | 900 | 0.06 | 0.12 |
| Max. cutt | ing depth | Ap | |||
| max Sc | hnitttiefe |
Ae
1. Please select high precise machine and tool holder. 2. Please use water-soluble cutting liquid. 3. Make overhang as short as possible if no interference. 1. Bitte Maschine und Werkzeugaufnahme mit hoher Präzission und Stabilität wählen. 2. Bitte wasserlösliche Kühlmittel verwenden. 3. Die Werkzeugauskragung so kurz wie möglich wählen.
