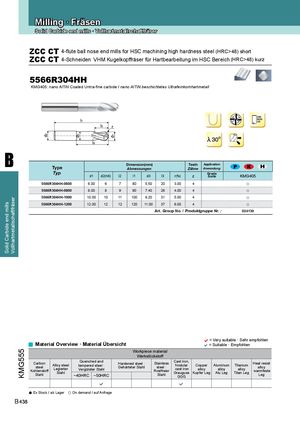

ZCC CT 4-flute ball nose end mills for HSC machining high hardness steel (HRC>48) short
ZCC CT 4- (HRC>48)SchneidenVHM Kugelkopffräser für Hartbearbeitung im HSC Bereich kurz
KMG405: nano AlTiN Coated Untra-fine carbide / nano AITiN beschichtetes Ultrafeinkornhartmetall
B
| Type | Dimensio Abmess | n(mm) ungen | Teeth Zähne | Application Anwendung | H | ||||||
| Typ | d1 | d2(h6) | l2 | l1 | d3 | l3 | r(fs) | z | Grade Sorte | KMG405 | |
| 5566R304HH-0600 | 6.00 | 6 | 7 | 80 | 5.50 | 20 | 3.00 | 4 | ○ | ||
| 5566R304HH-0800 | 8.00 | 8 | 9 | 90 | 7.40 | 26 | 4.00 | 4 | ○ | ||
| 5566R304HH-1000 | 10.00 | 10 | 11 | 100 | 9.20 | 31 | 5.00 | 4 | ○ | ||
| 5566R304HH-1200 | 12.00 | 12 | 12 | 120 | 11.00 | 37 | 6.00 | 4 | ○ | ||
| A | rt. Gro | up No. / | Produkt | gruppe Nr. : | 024130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
Werkstückstoff
Carbon Quenched and Stainless Cast iron, Heat resist
| Alloy steel | tempered steel · | Hardened steel · | Nodular | Copper | Aluminum | Titanium | ||||||
| steel | Legierter | Gehärteter Stahl | steel · | cast iron | alloy | alloy | alloy | alloy | ||||
| Kohlenstoff | Vergüteter Stahl | Rostfreier | ||||||||||
| Stahl | Stahl | Stahl | Grauguss | Kupfer Leg | Alu Leg | Titan Leg warmfeste Leg |
~40HRC ~50HRC GGG
