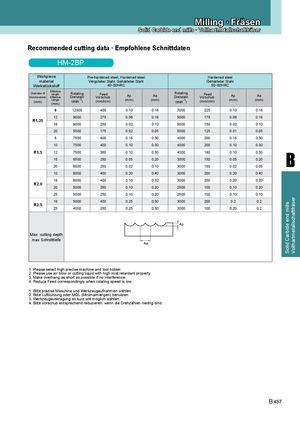

Recommended cutting data · Empfohlene Schnittdaten
HM-2BP
| Workp mate Werkstü | iece rial ckstoff | P V | re-hardened steel 40~50 ergüteter Stahl, | ,Hardened ste HRC Gehärteter Sta | el hl | Hardene 50~60 Gehärtet | d steel HRC er Stahl | ||
| Diameter Ø | Effective | Rotatin | Rotating | ||||||
| (mm) Durchmesser | length (mm) Effektive Länge | g (min-1) Drehzahl | Feed (mm/min) Vorschub | Ap (mm) | Ae (mm) | (min-1) Drehzahl | Feed (mm/min) Vorschub | Ap (mm) | Ae (mm) |
| 8 | 12500 | 400 | 0.10 | 0.16 | 7000 | 225 | 0.10 | 0.16 | |
| R125 | 12 | 9000 | 275 | 0.06 | 0.16 | 5000 | 175 | 0.06 | 0.16 |
| . | 16 | 9000 | 250 | 0.02 | 0.10 | 5000 | 150 | 0.02 | 0.10 |
| 20 | 5500 | 175 | 0.02 | 0.05 | 5000 | 125 | 0.01 | 0.05 | |
| 8 | 7500 | 400 | 0.15 | 0.30 | 4000 | 200 | 0.15 | 0.30 | |
| 10 | 7500 | 400 | 0.10 | 0.30 | 4000 | 200 | 0.10 | 0.30 | |
| R1.5 | 12 | 7500 | 360 | 0.10 | 0.30 | 4000 | 180 | 0.10 | 0.30 |
| 16 | 6500 | 250 | 0.05 | 0.20 | 3000 | 150 | 0.05 | 0.20 | |
| 20 | 6500 | 250 | 0.02 | 0.10 | 3000 | 150 | 0.02 | 0.05 | |
| 10 | 6000 | 400 | 0.20 | 0.40 | 3000 | 200 | 0.20 | 0.40 | |
| R20 | 16 | 6000 | 400 | 0.10 | 0.32 | 3000 | 200 | 0.20 | 0.20 |
| . | 20 | 5000 | 250 | 0.10 | 0.20 | 2500 | 100 | 0.10 | 0.20 |
| 25 | 5000 | 250 | 0.10 | 0.20 | 2500 | 100 | 0.10 | 0.10 | |
| R25 | 16 | 5000 | 400 | 0.25 | 0.50 | 3000 | 200 | 0.2 | 0.2 |
| . | 25 | 4000 | 250 | 025 | 050 | 3000 | 100 | 020 | 02 |
| . | . | Ap | . | . | |||||
| Max. cutti | ng depth | ||||||||
| max Sch | nitttiefe | Ae |
1. Please select high precise machine and tool holder. 2. Please use air blow or cutting liquid with high mist retardant property. 3. Make overhang as short as possible if no interference. 4. Reduce Feed correspondingly when rotating speed is low. 1. Bitte präzise Maschine und Werkzeugaufnahmen wählen 2. Bitte Luftkühlung oder MQL (Minimalmengen) benutzen. 3. Werkzeugauskragung so kurz wie möglich wählen. 4. Bitte Vorschub entsprechend reduzieren, wenn die Drehzahlen niedrig sind.
