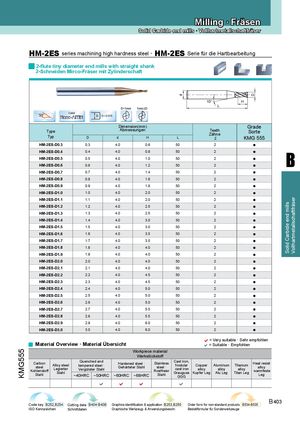

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser
HM-2ES series machining high hardness steel · HM-2ES Serie für die Hartbearbeitung
2-flute tiny diameter end mills with straight shank
2-Schneiden Mirco-Fräser mit Zylinderschaft
D
d
10° H
L
D<1mm 1mm≤D
Coated
35o D 0~-0.015
Nano-AITiN
Dimension(mm)
Abmessungen
Grade
Type Teeth Sorte
Zähne
Typ D d H L Z KMG 555
HM-2ES-D0.3 0.3 4.0 0.6 50 2 ●
B
HM-2ES-D0.4 0.4 4.0 0.8 50 2 ●
HM-2ES-D0.5 0.5 4.0 1.0 50 2 ●
HM-2ES-D0.6 0.6 4.0 1.2 50 2 ●
HM-2ES-D0.7 0.7 4.0 1.4 50 2 ●
HM-2ES-D0.8 0.8 4.0 1.6 50 2 ●
HM-2ES-D0.9 0.9 4.0 1.8 50 2 ●
HM-2ES-D1.0 1.0 4.0 2.0 50 2 ●
●
Vollhartmetallschaftfräser
HM-2ES-D1.1 1.1 4.0 2.0 50 2
Solid Carbide end mills
HM-2ES-D1.2 1.2 4.0 2.5 50 2 ●
HM-2ES-D1.3 1.3 4.0 2.5 50 2 ●
HM-2ES-D1.4 1.4 4.0 3.0 50 2 ●
HM-2ES-D1.5 1.5 4.0 3.0 50 2 ●
HM-2ES-D1.6 1.6 4.0 3.5 50 2 ●
HM-2ES-D1.7 1.7 4.0 3.5 50 2 ●
HM-2ES-D1.8 1.8 4.0 4.0 50 2 ●
HM-2ES-D1.9 1.9 4.0 4.0 50 2 ●
HM-2ES-D2.0 2.0 4.0 4.0 50 2 ●
HM-2ES-D2.1 2.1 4.0 4.0 50 2 ●
HM-2ES-D2.2 2.2 4.0 4.5 50 2 ●
HM-2ES-D2.3 2.3 4.0 4.5 50 2 ●
HM-2ES-D2.4 2.4 4.0 5.0 50 2 ●
HM-2ES-D2.5 2.5 4.0 5.0 50 2 ●
HM-2ES-D2.6 2.6 4.0 5.0 50 2 ●
HM-2ES-D2.7 2.7 4.0 5.5 50 2 ●
HM-2ES-D2.8 2.8 4.0 5.5 50 2 ●
HM-2ES-D2.9 2.9 4.0 6.0 50 2 ●
HM-2ES-D3.0 3.0 4.0 6.0 50 2 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG555
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
Code key B252,B254 Cutting data B404-B408 Graphics identification & application B253,B255 Order form for non-standard products B534-B535
B 403
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
