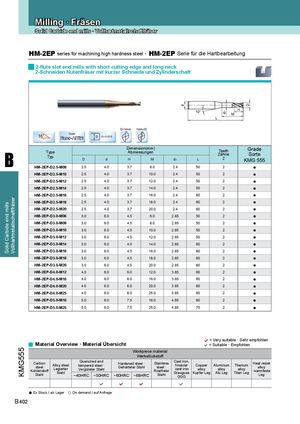

General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser
HM-2EP series for machining high hardness steel · HM-2EP Serie für die Hartbearbeitung
2-flute slot end mills with short cutting edge and long neck
2-Schneiden Nutenfräser mit kurzer Schneide und Zylinderschaft
D
d
H
10°
d1
M
L
D<1mm 1mm≤D
o Coated
35 D 0~-0.015
Nano-AITiN
Dimension(mm)
B
Teeth Grade
Type Abmessungen
Typ
Zähne Sorte
Z
D d H M d1 L KMG 555
HM-2EP-D2.5-M08 2.5 4.0 3.7 8.0 2.4 50 2 ●
HM-2EP-D2.5-M10 2.5 4.0 3.7 10.0 2.4 50 2 ●
HM-2EP-D2.5-M12 2.5 4.0 3.7 12.0 2.4 50 2 ●
HM-2EP-D2.5-M14 2.5 4.0 3.7 14.0 2.4 50 2 ●
HM-2EP-D2.5-M16 2.5 4.0 3.7 16.0 2.4 60 2 ●
Vollhartmetallschaftfräser
HM-2EP-D2.5-M18 2.5 4.0 3.7 18.0 2.4 60 2 ●
Solid Carbide end mills
HM-2EP-D2.5-M20 2.5 4.0 3.7 20.0 2.4 60 2 ●
HM-2EP-D3.0-M06 3.0 6.0 4.5 6.0 2.85 50 2 ●
HM-2EP-D3.0-M08 3.0 6.0 4.5 8.0 2.85 50 2 ●
HM-2EP-D3.0-M10 3.0 6.0 4.5 10.0 2.85 50 2 ●
HM-2EP-D3.0-M12 3.0 6.0 4.5 12.0 2.85 50 2 ●
HM-2EP-D3.0-M14 3.0 6.0 4.5 14.0 2.85 60 2 ●
HM-2EP-D3.0-M16 3.0 6.0 4.5 16.0 2.85 60 2 ●
HM-2EP-D3.0-M18 3.0 6.0 4.5 18.0 2.85 60 2 ●
HM-2EP-D3.0-M20 3.0 6.0 4.5 20.0 2.85 60 2 ●
HM-2EP-D4.0-M12 4.0 6.0 6.0 12.0 3.85 60 2 ●
HM-2EP-D4.0-M16 4.0 6.0 6.0 16.0 3.85 60 2 ●
HM-2EP-D4.0-M20 4.0 6.0 6.0 20.0 3.85 60 2 ●
HM-2EP-D4.0-M25 4.0 6.0 6.0 25.0 3.85 60 2 ●
HM-2EP-D5.0-M16 5.0 6.0 7.5 16.0 4.85 60 2 ●
HM-2EP-D5.0-M25 5.0 6.0 7.5 25.0 4.85 70 2 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
KMG555
Workpiece material
Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
● Ex Stock / ab Lager ○ On demand / auf Anfrage
B 402
