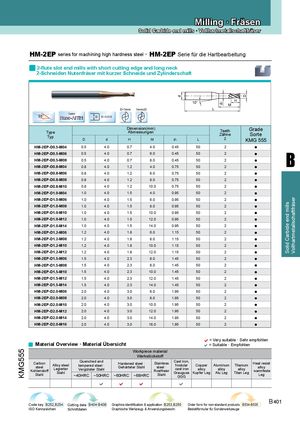

KMG555 d d1 D Solid Carbide end mills Vollhartmetallschaftfräser Milling · Fräsen Solid Carbide end mills · Vollhartmetallschaftfräser HM-2EP series for machining high hardness steel · HM-2EP Serie für die Hartbearbeitung 2-flute slot end mills with short cutting edge and long neck 2-Schneiden Nutenfräser mit kurzer Schneide und Zylinderschaft 10° HM D<1mm 1mm≤D L 35o CoatedNano-AITiN D 0~-0.015 TypeTyp Dimension(mm)Abmessungen TeethZähne GradeSorteDdHMd1LZKMG 555 HM-2EP-D0.5-M04 0.5 4.0 0.7 4.0 0.45 50 2 ● HM-2EP-D0.5-M06 0.5 4.0 0.7 6.0 0.45 50 2HM-2EP-D0.5-M080.54.00.78.00.45502HM-2EP-D0.8-M040.84.01.24.00.75502●●●B HM-2EP-D0.8-M06 0.8 4.0 1.2 6.0 0.75 50 2 ● HM-2EP-D0.8-M08 0.8 4.0 1.2 8.0 0.75 50 2 ● HM-2EP-D0.8-M10 0.8 4.0 1.2 10.0 0.75 50 2 ● HM-2EP-D1.0-M04 1.0 4.0 1.5 4.0 0.95 50 2 ● HM-2EP-D1.0-M06 1.0 4.0 1.5 6.0 0.95 50 2 ● HM-2EP-D1.0-M08 1.0 4.0 1.5 8.0 0.95 50 2 ● HM-2EP-D1.0-M10 1.0 4.0 1.5 10.0 0.95 50 2 ● HM-2EP-D1.0-M12 1.0 4.0 1.5 12.0 0.95 50 2 ● HM-2EP-D1.0-M14 1.0 4.0 1.5 14.0 0.95 50 2 ● HM-2EP-D1.2-M06 1.2 4.0 1.8 6.0 1.15 50 2 ● HM-2EP-D1.2-M08 1.2 4.0 1.8 8.0 1.15 50 2 ● HM-2EP-D1.2-M10 1.2 4.0 1.8 10.0 1.15 50 2 ● HM-2EP-D1.2-M12 1.2 4.0 1.8 12.0 1.15 50 2 ● HM-2EP-D1.5-M06 1.5 4.0 2.3 6.0 1.45 50 2 ● HM-2EP-D1.5-M08 1.5 4.0 2.3 8.0 1.45 50 2 ● HM-2EP-D1.5-M10 1.5 4.0 2.3 10.0 1.45 50 2 ● HM-2EP-D1.5-M12 1.5 4.0 2.3 12.0 1.45 50 2 ● HM-2EP-D1.5-M14 1.5 4.0 2.3 14.0 1.45 50 2 ● HM-2EP-D2.0-M06 2.0 4.0 3.0 6.0 1.95 50 2 ● HM-2EP-D2.0-M08 2.0 4.0 3.0 8.0 1.95 50 2 ● HM-2EP-D2.0-M10 2.0 4.0 3.0 10.0 1.95 50 2 ● HM-2EP-D2.0-M12 2.0 4.0 3.0 12.0 1.95 50 2 ● HM-2EP-D2.0-M14 2.0 4.0 3.0 14.0 1.95 50 2 ● HM-2EP-D2.0-M16 2.0 4.0 3.0 16.0 1.95 50 2 ● = Very suitable · Sehr empfohlen   Material Overview · Material Übersicht = Suitable · Empfohlen Workpiece material Werkstückstoff CarbonsteelKohlenstoffStahlAlloy steelLegierterStahlQuenched andtempered steel ·Vergüteter Stahl~40HRC~50HRCHardened steel ·Gehärteter Stahl~60HRC~68HRCStainlesssteel ·RostfreierStahlCast iron,NodularCopperAluminumcast ironalloyalloyGraugussKupfer LegAlu LegGGGTitaniumalloyTitan LegHeat resistalloywarmfesteLeg     Code key B252,B254 Cutting data B404-B408 Graphics identification & application B253,B255 Order form for non-standard products B534-B535 B 401 ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
