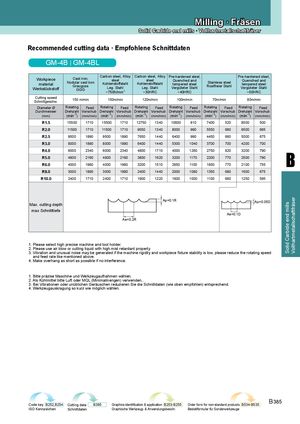

Solid Carbide end mills Vollhartmetallschaftfräser Milling · Fräsen Solid Carbide end mills · Vollhartmetallschaftfräser Recommended cutting data · Empfohlene Schnittdaten GM-4B | GM-4BL WorkpiecematerialWerkstückstoffCast iron,Nodular cast ironGraugussGGGCarbon steel, AlloyCarbon steel, AlloyPre-hardened steel,steelsteelQuenched andKohlenstoffstahlKohlenstoffstahltempered steelLeg. StahlLeg. StahlVergüteter Stahl~750N/mm2~30HRC~40HRCStainless steelRostfreier StahlPre-hardened steel,Quenched andtempered steelVergüteter Stahl~50HRC Cutting speedSchnittgeschw.150 m/min 150m/min 120m/min 100m/min 70m/min 80m/min Diameter Ø Rotating Feed Rotating Feed Rotating Feed Rotating Feed Rotating Feed Rotating Feed Durchmesser Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) R1.5 15500 1710 15500 1710 12750 1340 10600 810 7400 520 8500 500 R2.0 11500 1710 11500 1710 9550 1340 8000 990 5550 660 6500 665 R2.5 9500 1890 9500 1890 7650 1440 6400 990 4450 660 5000 675 R3.0 8000 1890 8000 1890 6400 1440 5300 1040 3700 700 4200 700 R4.0 6000 2340 6000 2340 4800 1710 4000 1260 2750 820 3200 790 R5.0 4800 2160 4800 2160 3800 1620 3200 1170 2200 770 2500 790R6.04000198040001980320015102650110018507702100755B R8.0 3000 1890 3000 1890 2400 1440 2000 1080 1350 680 1600 675 R10.0 2400 1710 2400 1710 1900 1220 1600 1000 1100 660 1250 595 Ap=0.1R Ap=0.05D Max. cutting depth max Schnitttiefe Ae=0.1D Ae=0.2R 1. Please select high precise machine and tool holder. 2. Please use air blow or cutting liquid with high mist retardant property. 3. Vibration and unusual noise may be generated if the machine rigidity and workpiece fixture stability is low, please reduce the rotating speed and feed rate like mentioned above. 4. Make overhang as short as possible if no interference. 1. Bitte präzise Maschine und Werkzeugaufnahmen wählen. 2. Als Kühlmittel bitte Luft oder MQL (Minimalmengen) verwenden.. 3. Bei Vibrationen oder unüblichen Geräuschen reduzieren Sie die Schnittdaten (wie oben empfohlen) entsprechend. 4. Werkzeugauskragung so kurz wie möglich wählen. Code key B252,B254 Cutting data B385 Graphics identification & application B253-B255 Order form for non-standard products B534-B535 B 385 ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
