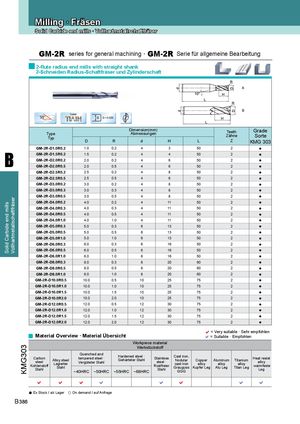

Каталог ZCC-CT фрезы монолитные - страница 146

General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

GM-2R series for general machining · GM-2R Serie für allgemeine Bearbeitung
2-flute radius end mills with straight shank
2-Schneiden Radius-Schaftfräser und Zylinderschaft

A


B
Coated
35o
TiAIN D 0~-0.020

Dimension(mm) Teeth Grade
Type Abmessungen
Typ
Zähne Sorte
D R d H L Z KMG 303
GM-2R-D1.0R0.2 ●

B
1.0 0.2 4 3 50 2
GM-2R-D1.5R0.2 1.5 0.2 4 4 50 2 ●
GM-2R-D2.0R0.2 2.0 0.2 4 6 50 2 ●
GM-2R-D2.0R0.5 2.0 0.5 4 6 50 2 ●
GM-2R-D2.5R0.2 2.5 0.2 4 8 50 2 ●
GM-2R-D2.5R0.5 2.5 0.5 4 8 50 2 ●
GM-2R-D3.0R0.2 3.0 0.2 4 8 50 2 ●
GM-2R-D3.0R0.3 3.0 0.3 4 8 50 2 ●
GM-2R-D3.0R0.5 3.0 0.5 4 8 50 2 ●
Vollhartmetallschaftfräser


GM-2R-D4.0R0.2 4.0 0.2 4 11 50 2 ●
Solid Carbide end mills


GM-2R-D4.0R0.3 4.0 0.3 4 11 50 2 ●
GM-2R-D4.0R0.5 4.0 0.5 4 11 50 2 ●
GM-2R-D4.0R1.0 4.0 1.0 4 11 50 2 ●
GM-2R-D5.0R0.3 5.0 0.3 6 13 50 2 ●
GM-2R-D5.0R0.5 5.0 0.5 6 13 50 2 ●
GM-2R-D5.0R1.0 5.0 1.0 6 13 50 2 ●
GM-2R-D6.0R0.3 6.0 0.3 6 16 50 2 ●
GM-2R-D6.0R0.5 6.0 0.5 6 16 50 2 ●
GM-2R-D6.0R1.0 6.0 1.0 6 16 50 2 ●
GM-2R-D8.0R0.3 8.0 0.3 8 20 60 2 ●
GM-2R-D8.0R0.5 8.0 0.5 8 20 60 2 ●
GM-2R-D8.0R1.0 8.0 1.0 8 20 60 2 ●
GM-2R-D10.0R0.5 10.0 0.5 10 25 75 2 ●
GM-2R-D10.0R1.0 10.0 1.0 10 25 75 2 ●
GM-2R-D10.0R1.5 10.0 1.5 10 25 75 2 ●
GM-2R-D10.0R2.0 10.0 2.0 10 25 75 2 ●
GM-2R-D12.0R0.5 12.0 0.5 12 30 75 2 ●
GM-2R-D12.0R1.0 12.0 1.0 12 30 75 2 ●
GM-2R-D12.0R1.5 12.0 1.5 12 30 75 2 ●
GM-2R-D12.0R2.0 12.0 2.0 12 30 75 2 ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG303


Werkstückstoff
Quenched and
Hardened steel · Cast iron,
Carbon tempered steel · Gehärteter Stahl Stainless Heat resist
Alloy steel Nodular Copper Aluminum Titanium
steel Legierter Vergüteter Stahl steel · cast iron alloy
Kohlenstoff Rostfreier alloy alloy alloy warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl Stahl Leg
~40HRC ~50HRC ~55HRC ~68HRC GGG

       
● Ex Stock / ab Lager ○ On demand / auf Anfrage
