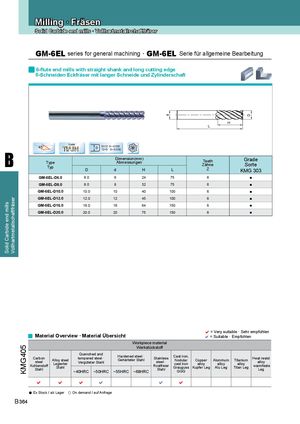

GM-6EL series for general machining · GM-6EL Serie für allgemeine Bearbeitung
6-flute end mills with straight shank and long cutting edge
6- Schneiden Eckfräser mit langer Schneide und Zylinderschaft
| Coate TiAI 45 o | d N D | D≤12 0~-0.020 12 | d | L | D H | |
| Type Typ | D | Dime d Abm | nsion(mm) H essungen | L | Teeth Z Zähne | Grade KMG 303 Sorte |
| GM-6EL-D6.0 | 6.0 | 6 | 24 | 75 | 6 | ● |
| GM-6EL-D8.0 | 8.0 | 8 | 32 | 75 | 6 | ● |
| GM-6EL-D10.0 | 10.0 | 10 | 40 | 100 | 6 | ● |
| GM-6EL-D12.0 | 12.0 | 12 | 45 | 100 | 6 | ● |
| GM-6EL-D16.0 | 16.0 | 16 | 64 | 150 | 6 | ● |
| GM-6EL-D20.0 | 20.0 | 20 | 75 | 150 | 6 | ● |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~55HRC Gehärtet | Workpiece d steel · ~68HRC Werkstü er Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | |
