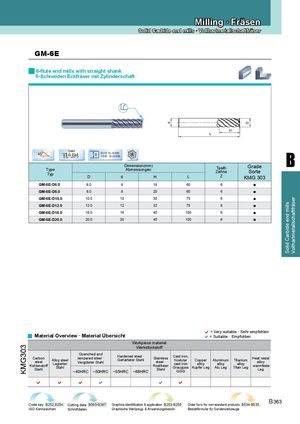

GM-6E
6-flute end mills with straight shank
6- Schneiden Eckfräser mit Zylinderschaft
| 45 o Coat TiA | D≤12 12 D ed IN | 0~-0.020 0~-0.030 | d | L H | D | ||
| Type Typ | Dimension Abmessun | (mm) gen | Teeth Zähne | Grade Sorte | |||
| D | d | H | L | Z | KMG 303 | ||
| GM-6E-D6.0 | 6.0 | 6 | 18 | 60 | 6 | ● | |
| GM-6E-D8.0 | 8.0 | 8 | 20 | 60 | 6 | ● | |
| GM-6E-D10.0 | 10.0 | 10 | 30 | 75 | 6 | ● | |
| GM-6E-D12.0 | 12.0 | 12 | 32 | 75 | 6 | ● | |
| GM-6E-D16.0 | 16.0 | 16 | 40 | 100 | 6 | ● | |
| GM-6E-D20.0 | 20.0 | 20 | 45 | 100 | 6 | ● |
B
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
Werkstückstoff
Quenched and
| Carbon | tempered steel · | Hardened steel · | Stainless | Cast iron, | Heat resist | |||||||||
| steel | Alloy steel | Gehärteter Stahl | steel · | Nodular | Copper | Aluminum | Titanium | alloy | ||||||
| Legierter | Vergüteter Stahl | cast iron | alloy | alloy | alloy | |||||||||
| Kohlenstoff | Stahl | Rostfreier | Grauguss | Kupfer Leg | Alu Leg | Titan Leg warmfeste | ||||||||
| Stahl | ~40HRC ~50HRC ~55HRC ~68HRC | Stahl | GGG | Leg |
