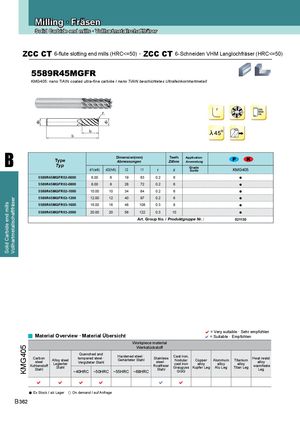

ZCC CT 6-flute slotting end mills (HRC<=50) · ZCC CT 6- (HRC<=50)Schneiden VHM Langlochfräser
KMG405: nano TiAIN coated ultra-fine carbide / nano TiAIN beschichtetes Ultrafeinkornhartmetall
B
| Type | Di A | mension bmessu | (mm) ngen | Teeth Zähne | Application Anwendung | |||
| Typ | d1(e8) | d2(h6) | l2 | l1 | r | z | Grade Sorte | KMG405 |
| 5589R45MGFR02-0600 | 6.00 | 6 | 19 | 63 | 0.2 | 6 | ● | |
| 5589R45MGFR02-0800 | 8.00 | 8 | 28 | 72 | 0.2 | 6 | ● | |
| 5589R45MGFR02-1000 | 10.00 | 10 | 34 | 84 | 0.2 | 6 | ● | |
| 5589R45MGFR02-1200 | 12.00 | 12 | 40 | 97 | 0.2 | 6 | ● | |
| 5589R45MGFR03-1600 | 16.00 | 16 | 48 | 108 | 0.3 | 8 | ● | |
| 5589R45MGFR03-2000 | 20.00 | 20 | 56 | 122 | 0.3 | 10 | ● | |
| Art. Gr | oup No. | / Produkt | gruppe Nr. : | 021130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~55HRC Gehärtet | Workpiece d steel · ~68HRC Werkstü er Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | |
