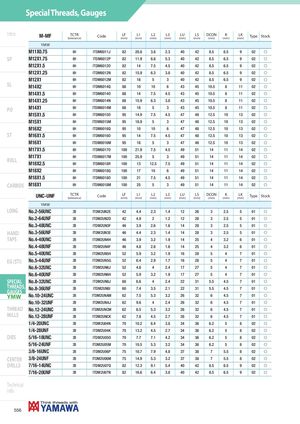

| Intro | M-MF | TCTR (tolerance) | Code | LF ( mm ) | L1 ( mm ) | L2 ( mm ) | L3 ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | Type | Stock |
| YMW | ||||||||||||||
| M11X0.75 | 6H | ITDM6011J | 82 | 20.8 | 3.8 | 2.3 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f | |
| SP | M12X1.75 | 6H | ITDM6012P | 82 | 11.9 | 8.8 | 5.3 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f |
| M12X1.5 | 6H | ITDM6012O | 82 | 14 | 7.5 | 4.5 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f | |
| M12X1.25 | 6H | ITDM6012N | 82 | 15.9 | 6.3 | 3.8 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f | |
| M12X1 | 6H | ITDM6012M | 82 | 18 | 5 | 3 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f | |
| SL | M14X2 | 6H | ITDM6014Q | 88 | 10 | 10 | 6 | 43 | 45 | 10.5 | 8 | 11 | 02 | f |
| M14X1.5 | 6H | ITDM6014O | 88 | 14 | 7.5 | 4.5 | 43 | 45 | 10.5 | 8 | 11 | 02 | f | |
| M14X1.25 | 6H | ITDM6014N | 88 | 15.9 | 6.3 | 3.8 | 43 | 45 | 10.5 | 8 | 11 | 02 | f | |
| PO | M14X1 | 6H | ITDM6014M | 88 | 18 | 5 | 3 | 43 | 45 | 10.5 | 8 | 11 | 02 | f |
| M15X1.5 | 6H | ITDM6015O | 95 | 14.9 | 7.5 | 4.5 | 47 | 48 | 12.5 | 10 | 13 | 02 | f | |
| M15X1 | 6H | ITDM6015M | 95 | 18.9 | 5 | 3 | 47 | 48 | 12.5 | 10 | 13 | 02 | f | |
| M16X2 | 6H | ITDM6016Q | 95 | 10 | 10 | 6 | 47 | 48 | 12.5 | 10 | 13 | 02 | f | |
| ST | M16X1.5 | 6H | ITDM6016O | 95 | 14 | 7.5 | 4.5 | 47 | 48 | 12.5 | 10 | 13 | 02 | f |
| M16X1 | 6H | ITDM6016M | 95 | 18 | 5 | 3 | 47 | 48 | 12.5 | 10 | 13 | 02 | f | |
| M17X1.5 | 6H | ITDM6017O | 100 | 21.9 | 7.5 | 4.5 | 49 | 51 | 14 | 11 | 14 | 02 | f | |
| M17X1 | 6H | ITDM6017M | 100 | 25.9 | 5 | 3 | 49 | 51 | 14 | 11 | 14 | 02 | f | |
| ROLL | M18X2.5 | 6H | ITDM6018R | 100 | 13 | 12.5 | 7.5 | 49 | 51 | 14 | 11 | 14 | 02 | f |
| M18X2 | 6H | ITDM6018Q | 100 | 17 | 10 | 6 | 49 | 51 | 14 | 11 | 14 | 02 | f | |
| M18X1.5 | 6H | ITDM6018O | 100 | 21 | 7.5 | 4.5 | 49 | 51 | 14 | 11 | 14 | 02 | f | |
| CARBIDE | M18X1 | 6H | ITDM6018M | 100 | 25 | 5 | 3 | 49 | 51 | 14 | 11 | 14 | 02 | f |
| UNC-UNF | TCTR (tolerance) | Code | LF ( mm ) | L1 ( mm ) | L2 ( mm ) | L3 ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | Type | Stock | |
| YMW | ||||||||||||||
| LONG | No.2-56UNC | 2B | ITDM2UN2E | 42 | 4.4 | 2.3 | 1.4 | 12 | 26 | 3 | 2.5 | 5 | 01 | f |
| No.2-64UNF | 2B | ITDM2UN2D | 42 | 4.9 | 2 | 1.2 | 12 | 26 | 3 | 2.5 | 5 | 01 | f | |
| No.3-48UNC | 2B | ITDM2UN3F | 46 | 3.9 | 2.6 | 1.6 | 14 | 28 | 3 | 2.5 | 5 | 01 | f | |
| HAND | No.3-56UNF | 2B | ITDM2UN3E | 46 | 4.4 | 2.3 | 1.4 | 14 | 28 | 3 | 2.5 | 5 | 01 | f |
| TAPS | No.4-40UNC | 2B | ITDM2UN4H | 46 | 3.9 | 3.2 | 1.9 | 14 | 25 | 4 | 3.2 | 6 | 01 | f |
| No.4-48UNF | 2B | ITDM2UN4F | 46 | 4.8 | 2.6 | 1.6 | 14 | 25 | 4 | 3.2 | 6 | 01 | f | |
| No.5-40UNC | 2B | ITDM2UN5H | 52 | 5.9 | 3.2 | 1.9 | 16 | 28 | 5 | 4 | 7 | 01 | f | |
| EG (STI) | No.5-44UNF | 2B | ITDM2UN5G | 52 | 6.4 | 2.9 | 1.7 | 16 | 28 | 5 | 4 | 7 | 01 | f |
| No.6-32UNC | 2B | ITDM2UN6J | 52 | 4.6 | 4 | 2.4 | 17 | 27 | 5 | 4 | 7 | 01 | f | |
| No.6-40UNF | 2B | ITDM2UN6H | 52 | 5.9 | 3.2 | 1.9 | 17 | 27 | 5 | 4 | 7 | 01 | f | |
| SPECIAL | No.8-32UNC | 2B | ITDM2UN8J | 60 | 6.6 | 4 | 2.4 | 22 | 31 | 5.5 | 4.5 | 7 | 01 | f |
| THREADS, GAUGES | No.8-36UNF | 2B | ITDM2UN8I | 60 | 7.4 | 3.5 | 2.1 | 22 | 31 | 5.5 | 4.5 | 7 | 01 | f |
| YMW | No.10-24UNC | 2B | ITDM2UNAM | 62 | 7.5 | 5.3 | 3.2 | 26 | 32 | 6 | 4.5 | 7 | 01 | f |
| No.10-32UNF | 2B | ITDM2UNAJ | 62 | 9.6 | 4 | 2.4 | 26 | 32 | 6 | 4.5 | 7 | 01 | f | |
| THREAD | No.12-24UNC | 2B | ITDM2UNCM | 62 | 6.5 | 5.3 | 3.2 | 26 | 32 | 6 | 4.5 | 7 | 01 | f |
| MILLS | No.12-28UNF | 2B | ITDM2UNCK | 62 | 7.8 | 4.5 | 2.7 | 26 | 32 | 6 | 4.5 | 7 | 01 | f |
| 1/4-20UNC | 2B | ITDM2U04N | 70 | 10.2 | 6.4 | 3.8 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | |
| 1/4-28UNF | 2B | ITDM2U04K | 70 | 13.2 | 4.5 | 2.7 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | |
| DIES | 5/16-18UNC | 2B | ITDM2U05O | 70 | 7.7 | 7.1 | 4.2 | 34 | 36 | 6.2 | 5 | 8 | 02 | f |
| 5/16-24UNF | 2B | ITDM2U05M | 70 | 10.5 | 5.3 | 3.2 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | |
| 3/8-16UNC | 2B | ITDM2U06P | 75 | 10.7 | 7.9 | 4.8 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | |
| CENTER | 3/8-24UNF | 2B | ITDM2U06M | 75 | 14.9 | 5.3 | 3.2 | 37 | 38 | 7 | 5.5 | 8 | 02 | f |
| DRILLS | 7/16-14UNC | 2B | ITDM2U07Q | 82 | 12.3 | 9.1 | 5.4 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f |
| 7/16-20UNF | 2B | ITDM2U07N | 82 | 16.6 | 6.4 | 3.8 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f |
