Каталоги Yamawa твердосплавные метчики для закаленной стали

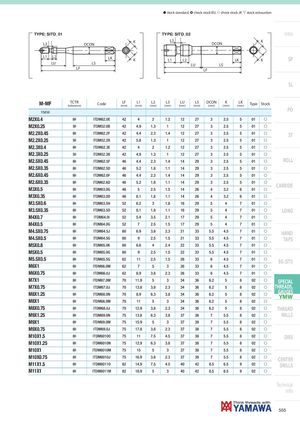

TYPE: SITD_01 L3 DCON
L1 L2 LU LS LF
TYPE: SITD_02 Intro
K L3 K
DCON
LK SP
K L1 L2 LK K
LU LS LF
| M-MF | TCTR (tolerance) | Code | LF ( mm ) | L1 ( mm ) | L2 ( mm ) | L3 ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | Type | Stock | SL |
| YMW | PO | |||||||||||||
| M2X0.4 | 6H | ITDM62.0E | 42 | 4 | 2 | 1.2 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| M2X0.25 | 5H | ITDM52.0B | 42 | 4.9 | 1.3 | 1 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| M2.2X0.45 | 6H | ITDM62.2F | 42 | 4.4 | 2.3 | 1.4 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | ST |
| M2.2X0.25 | 5H | ITDM52.2B | 42 | 5.8 | 1.3 | 1 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| M2.3X0.4 | 6H | ITDM62.3E | 42 | 4 | 2 | 1.2 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| M2.3X0.25 | 5H | ITDM52.3B | 42 | 4.9 | 1.3 | 1 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| M2.5X0.45 | 6H | ITDM62.5F | 46 | 4.4 | 2.3 | 1.4 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | ROLL |
| M2.5X0.35 | 6H | ITDM62.5D | 46 | 5.2 | 1.8 | 1.1 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | |
| M2.6X0.45 | 6H | ITDM62.6F | 46 | 4.4 | 2.3 | 1.4 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | |
| M2.6X0.35 | 6H | ITDM62.6D | 46 | 5.2 | 1.8 | 1.1 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | CARBIDE |
| M3X0.5 | 6H | ITDM63.0G | 46 | 5 | 2.5 | 1.5 | 14 | 26 | 4 | 3.2 | 6 | 01 | f | |
| M3X0.35 | 6H | ITDM63.0D | 46 | 6.1 | 1.8 | 1.1 | 14 | 26 | 4 | 3.2 | 6 | 01 | f | |
| M3.5X0.6 | 6H | ITDM63.5H | 52 | 6.2 | 3 | 1.8 | 16 | 29 | 5 | 4 | 7 | 01 | f | |
| M3.5X0.35 | 6H | ITDM63.5D | 52 | 8.1 | 1.8 | 1.1 | 16 | 29 | 5 | 4 | 7 | 01 | f | LONG |
| M4X0.7 | 6H | ITDM64.0I | 52 | 5.4 | 3.5 | 2.1 | 17 | 29 | 5 | 4 | 7 | 01 | f | |
| M4X0.5 | 6H | ITDM64.0G | 52 | 7 | 2.5 | 1.5 | 17 | 29 | 5 | 4 | 7 | 01 | f | |
| M4.5X0.75 | 6H | ITDM64.5J | 60 | 6.9 | 3.8 | 2.3 | 21 | 33 | 5.5 | 4.5 | 7 | 01 | f | HAND |
| M4.5X0.5 | 6H | ITDM64.5G | 60 | 9 | 2.5 | 1.5 | 21 | 33 | 5.5 | 4.5 | 7 | 01 | f | TAPS |
| M5X0.8 | 6H | ITDM65.0K | 60 | 6.6 | 4 | 2.4 | 22 | 33 | 5.5 | 4.5 | 7 | 01 | f | |
| M5X0.5 | 6H | ITDM65.0G | 60 | 9 | 2.5 | 1.5 | 22 | 33 | 5.5 | 4.5 | 7 | 01 | f | |
| M5.5X0.5 | 6H | ITDM65.5G | 62 | 11 | 2.5 | 1.5 | 26 | 33 | 6 | 4.5 | 7 | 01 | f | EG (STI) |
| M6X1 | 6H | ITDM66.0M | 62 | 7 | 5 | 3 | 26 | 33 | 6 | 4.5 | 7 | 01 | f | |
| M6X0.75 | 6H | ITDM66.0J | 62 | 8.9 | 3.8 | 2.3 | 26 | 33 | 6 | 4.5 | 7 | 01 | f | |
| M7X1 | 6H | ITDM67.0M | 70 | 11.9 | 5 | 3 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | SPECIAL |
| M7X0.75 | 6H | ITDM67.0J | 70 | 13.8 | 3.8 | 2.3 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | THREADS, |
| M8X1.25 | 6H | ITDM68.0N | 70 | 8.9 | 6.3 | 3.8 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | GAUGES YMW |
| M8X1 | 6H | ITDM68.0M | 70 | 11 | 5 | 3 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | |
| M8X0.75 | 6H | ITDM68.0J | 70 | 12.9 | 3.8 | 2.3 | 34 | 36 | 6.2 | 5 | 8 | 02 | f | THREAD |
| M9X1.25 | 6H | ITDM69.0N | 75 | 13.8 | 6.3 | 3.8 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | MILLS |
| M9X1 | 6H | ITDM69.0M | 75 | 15.9 | 5 | 3 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | |
| M9X0.75 | 6H | ITDM69.0J | 75 | 17.8 | 3.8 | 2.3 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | |
| M10X1.5 | 6H | ITDM6010O | 75 | 11 | 7.5 | 4.5 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | DIES |
| M10X1.25 | 6H | ITDM6010N | 75 | 12.9 | 6.3 | 3.8 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | |
| M10X1 | 6H | ITDM6010M | 75 | 15 | 5 | 3 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | |
| M10X0.75 | 6H | ITDM6010J | 75 | 16.9 | 3.8 | 2.3 | 37 | 38 | 7 | 5.5 | 8 | 02 | f | CENTER |
| M11X1.5 | 6H | ITDM6011O | 82 | 14.9 | 7.5 | 4.5 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f | DRILLS |
| M11X1 | 6H | ITDM6011M | 82 | 18.9 | 5 | 3 | 40 | 42 | 8.5 | 6.5 | 9 | 02 | f |
