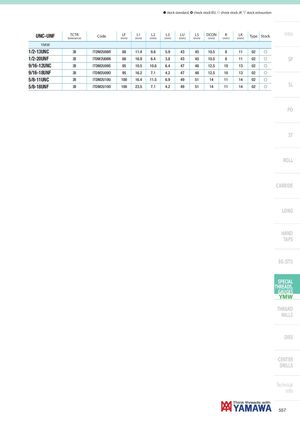

| UNC-UNF | TCTR (tolerance) | Code | LF ( mm ) | L1 ( mm ) | L2 ( mm ) | L3 ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | Type | Stock |
| YMW | |||||||||||||
| 1/2-13UNC | 2B | ITDM2U08R | 88 | 11.4 | 9.8 | 5.9 | 43 | 45 | 10.5 | 8 | 11 | 02 | f |
| 1/2-20UNF | 2B | ITDM2U08N | 88 | 16.9 | 6.4 | 3.8 | 43 | 45 | 10.5 | 8 | 11 | 02 | f |
| 9/16-12UNC | 2B | ITDM2U09S | 95 | 10.5 | 10.6 | 6.4 | 47 | 48 | 12.5 | 10 | 13 | 02 | f |
| 9/16-18UNF | 2B | ITDM2U09O | 95 | 16.2 | 7.1 | 4.2 | 47 | 48 | 12.5 | 10 | 13 | 02 | f |
| 5/8-11UNC | 2B | ITDM2U10U | 100 | 16.4 | 11.5 | 6.9 | 49 | 51 | 14 | 11 | 14 | 02 | f |
| 5/8-18UNF | 2B | ITDM2U10O | 100 | 23.5 | 7.1 | 4.2 | 49 | 51 | 14 | 11 | 14 | 02 | f |
