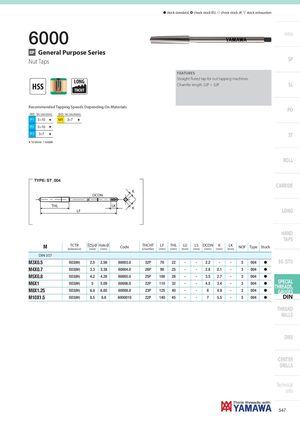

GP General Purpose Series
Nut Taps SP
FEATURES Straight fl uted tap for nut tapping machines.
LONG
HSS Chamfer length 22P ÷ 32P SL
THCHT
Recommended Tapping Speeds Depending On Materials PO ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | H | M1 | 3÷7 | H | |
| P2 | 5÷10 | H | ||||
| P7 | 3÷7 | H | ST |
H 1st choice I suitable
ROLL
DIN-6000
TYPE: ST_004
DCON
THL
LK
CARBIDE
K
| M | TCTR (tolerance) LF | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG HAND TAPS |
| DIN 357 | ||||||||||||||||
| M3X0.5 | ISO2(6H) | 2.5 | 2.56 | 60003.0 | 32P | 70 | 22 | - | - | 2.2 | - | - | 3 | 004 | h | EG (STI) |
| M4X0.7 | ISO2(6H) | 3.3 | 3.38 | 60004.0 | 26P | 90 | 25 | - | - | 2.8 | 2.1 | - | 3 | 004 | h | |
| M5X0.8 | ISO2(6H) | 4.2 | 4.28 | 60005.0 | 25P | 100 | 28 | - | - | 3.5 | 2.7 | - | 3 | 004 | h | |
| M6X1 | ISO2(6H) | 5 | 5.09 | 60006.0 | 22P | 110 | 32 | - | - | 4.5 | 3.4 | - | 3 | 004 | h | SPECIAL THREADS |
| M8X1.25 | ISO2(6H) | 6.8 | 6.85 | 60008.0 | 23P | 125 | 40 | - | - | 6 | 4.9 | - | 3 | 004 | h | , GAUGES |
| M10X1.5 | ISO2(6H) | 8.5 | 8.6 | 6000010 | 22P | 140 | 45 | - | - | 7 | 5.5 | - | 3 | 004 | h | DIN |
