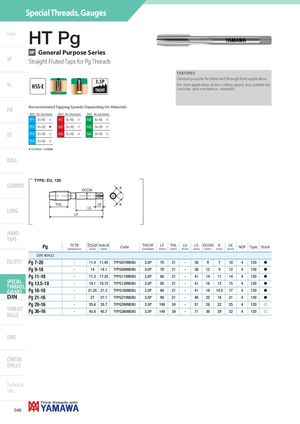

HT Pg
GP General Purpose Series
SP Straight Fluted Taps for Pg Threads
3.5P
SL HSS-E
THCHT
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | K1 | 5÷10 | I | N2 | 5÷10 | I | |
| P2 | 5÷10 | H | K2 | 5÷10 | I | N3 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | K3 | 5÷10 | I | N4 | 5÷10 | I |
| P4 | 5÷10 | I |
H 1st choice I suitable ROLL
FEATURES General purpose for blind and through hole application. For steel application at low cutting speed, also suitable for cast iron and non-ferrous materials.
DIN-HT Pg
TYPE: EU_120
CARBIDE
K DCON
THL LK K
LONG LS LF
HAND
TAPS
| Pg | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 40432 | ||||||||||||||||
| EG (STI) | Pg 7-20 | - | 11.4 | 11.45 | TYPG070NEBU | 3.5P | 70 | 21 | - | 36 | 9 | 7 | 10 | 4 | 120 | h |
| Pg 9-18 | - | 14 | 14.1 | TYPG090NEBU | 3.5P | 70 | 21 | - | 36 | 12 | 9 | 12 | 4 | 120 | h | |
| Pg 11-18 | - | 17.3 | 17.35 | TYPG110NEBU | 3.5P | 80 | 21 | - | 41 | 14 | 11 | 14 | 4 | 120 | h | |
| SPECIAL THREADS | Pg 13.5-18 | - | 19.1 | 19.15 | TYPG130NEBU | 3.5P | 80 | 21 | - | 41 | 16 | 12 | 15 | 4 | 120 | h |
| , GAUGES | Pg 16-18 | - | 21.25 | 21.3 | TYPG160NEBU | 3.5P | 80 | 21 | - | 41 | 18 | 14.5 | 17 | 4 | 120 | h |
| DIN | Pg 21-16 | - | 27 | 27.1 | TYPG210NEBU | 3.5P | 90 | 21 | - | 46 | 22 | 18 | 21 | 4 | 120 | h |
| Pg 29-16 | - | 35.6 | 35.7 | TYPG290NEBU | 3.5P | 100 | 24 | - | 51 | 28 | 22 | 25 | 4 | 120 | f | |
| THREAD MILLS | Pg 36-16 | - | 45.6 | 45.7 | TYPG360NEBU | 3.5P | 140 | 39 | - | 71 | 36 | 29 | 32 | 4 | 120 | f |
