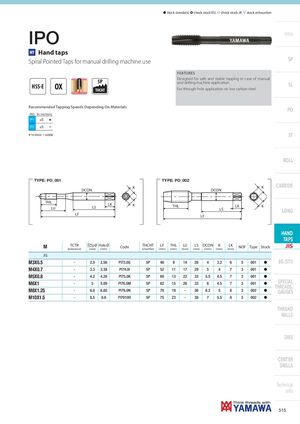

IPO
HT Hand taps
Spiral Pointed Taps for manual drilling machine use SP
FEATURES Designed for safe and stable tapping in case of manual 5P and drilling machine application.
HSS-E OX SL
THCHT For through hole application on low carbon steel.
Recommended Tapping Speeds Depending On Materials PO ISO Vc (m/min)
| P1 | ≤5 | H |
| P2 | ≤5 | I |
H 1st choice I suitable ST
ROLL
JIS-IPO
| M THL LU TYPE: PO001 | TCTR (tolerance) LF | Ø (mm) DCON LS | Hole Ø (mm) LK | Code K K | THCHT (chamfer) | LF ( mm ) TY | THL ( mm ) THL PE: PO | LU ( mm ) 002 | LS ( mm ) L | DCON ( mm ) DC F | K ( mm ) ON LS | LK ( mm ) L | NOF K | Type | Stock K K | CARBIDE LONG HAND TAPS JIS |
| JIS | ||||||||||||||||
| M3X0.5 | - | 2.5 | 2.56 | PI73.0G | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | h | EG (STI) |
| M4X0.7 | - | 3.3 | 3.38 | PI74.0I | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | h | |
| M5X0.8 | - | 4.2 | 4.28 | PI75.0K | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | h | |
| M6X1 | - | 5 | 5.09 | PI76.0M | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | h | SPECIAL THREADS |
| M8X1.25 | - | 6.8 | 6.85 | PI78.0N | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | h | , GAUGES |
| M10X1.5 | - | 8.5 | 8.6 | PI7010O | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | h |
