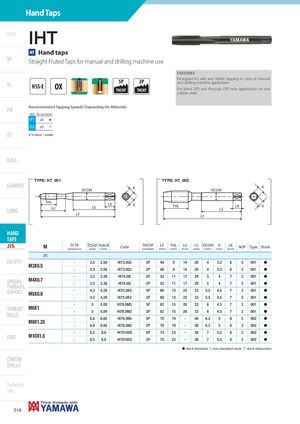

Общий каталог Yamawa 2021 - страница 515
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
IHT
HT Hand taps
SP Straight Fluted Taps for manual and drilling machine use
5P 2P
SL HSS-E OX
THCHT THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min)
| P1 | ≤5 | H |
| P2 | ≤5 | I |
ST H 1st choice I suitable
FEATURES Designed for safe and stable tapping in case of manual and drilling machine application. For blind (2P) and through (5P) hole application on low carbon steel.
ROLL
JIS-IHT
CARBIDE
LONG
HAND
TAPS
TYPE: HT_001
THL LU
TYPE: HT_002 K K DCON DCON
LK K
LS THL LK K
LS LF LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M3X05 | - | 2.5 | 2.56 | HI73.0G5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | h |
| . | - | 2.5 | 2.56 | HI73.0G2 | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | h |
| M4X07 | - | 3.3 | 3.38 | HI74.0I5 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | h |
| . | - | 3.3 | 3.38 | HI74.0I2 | 2P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | h |
| M5X08 | - | 4.2 | 4.28 | HI75.0K5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | h |
| . | - | 4.2 | 4.28 | HI75.0K2 | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | h |
| M6X1 | - | 5 | 5.09 | HI76.0M5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | h |
| - | 5 | 5.09 | HI76.0M2 | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | h | |
| M8X125 | - | 6.8 | 6.85 | HI78.0N5 | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | h |
| . | - | 6.8 | 6.85 | HI78.0N2 | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | h |
| M10X15 | - | 8.5 | 8.6 | HI7010O5 | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | h |
| . | - | 8.5 | 8.6 | HI7010O2 | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | h |
THREADS,
MILLS
h stock standard, f non-standard stock, m stock exhaustion
