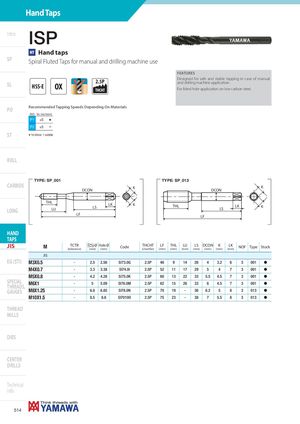

ISP
HT Hand taps
SP Spiral Fluted Taps for manual and drilling machine use
FEATURES Designed for safe and stable tapping in case of manual 2.5P and drilling machine application.
SL HSS-E OX
THCHT For blind hole application on low carbon steel.
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min)
| P1 | ≤5 | H |
| P2 | ≤5 | I |
ST H 1st choice I suitable
ROLL
JIS-ISP
CARBIDE
LONG
HAND
TAPS
TYPE: SP_001
THL LU
TYPE: SP_013 K K DCON DCON
LK K
LS THL LK K
LS LF LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M3X0.5 | - | 2.5 | 2.56 | SI73.0G | 2.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | h |
| M4X0.7 | - | 3.3 | 3.38 | SI74.0I | 2.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | h |
| M5X0.8 | - | 4.2 | 4.28 | SI75.0K | 2.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | h |
| M6X1 | - | 5 | 5.09 | SI76.0M | 2.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | h |
| M8X1.25 | - | 6.8 | 6.85 | SI78.0N | 2.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | h |
| M10X1.5 | - | 8.5 | 8.6 | SI7010O | 2.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | h |
