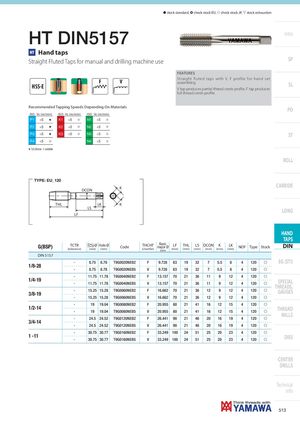

HT DIN5157
HT Hand taps
Straight Fluted Taps for manual and drilling machine use
F V
HSS-E
Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | <5 | H | K1 | <5 | I | N1 | <5 | I |
| P2 | <5 | H | K2 | <5 | I | N2 | <5 | I |
| P3 | <5 | H | K3 | <5 | I | N3 | <5 | I |
| P4 | <5 | I | N4 | <5 | I |
H 1st choice I suitable
SP
FEATURES Straight fluted taps with V, F profile for hand set assembling.
SL
V tap produces partial thread crests profi le, F tap produces full thread crests profi le.
PO
ST
ROLL
DIN-HT DIN5157
TYPE: EU_120 DCON
CARBIDE
K
THL LK K
LS LONG LF
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | HAND TAPS DIN |
| DIN 5157 | ||||||||||||||||
| 1/8-28 | - | 8.75 | 8.78 | T9G0020NEB2 | F | 9.728 | 63 | 19 | 32 | 7 | 5.5 | 8 | 4 | 120 | f | EG (STI) |
| - | 8.75 | 8.78 | T9G0020NEB5 | V | 9.728 | 63 | 19 | 32 | 7 | 5.5 | 8 | 4 | 120 | f | ||
| 1/4-19 | - | 11.75 | 11.78 | T9G0040NEB2 | F | 13.157 | 70 | 21 | 36 | 11 | 9 | 12 | 4 | 120 | f | |
| - | 11.75 | 11.78 | T9G0040NEB5 | V | 13.157 | 70 | 21 | 36 | 11 | 9 | 12 | 4 | 120 | f | SPECIAL THREADS | |
| 3/819 | - | 15.25 | 15.28 | T9G0060NEB2 | F | 16.662 | 70 | 21 | 36 | 12 | 9 | 12 | 4 | 120 | f | , GAUGES |
| - | - | 15.25 | 15.28 | T9G0060NEB5 | V | 16.662 | 70 | 21 | 36 | 12 | 9 | 12 | 4 | 120 | f | |
| 1/214 | - | 19 | 19.04 | T9G0080NEB2 | F | 20.955 | 80 | 21 | 41 | 16 | 12 | 15 | 4 | 120 | f | |
| - | - | 19 | 19.04 | T9G0080NEB5 | V | 20.955 | 80 | 21 | 41 | 16 | 12 | 15 | 4 | 120 | f | THREAD |
| 3/414 | - | 24.5 | 24.52 | T9G0120NEB2 | F | 26.441 | 90 | 21 | 46 | 20 | 16 | 19 | 4 | 120 | f | MILLS |
| - | - | 24.5 | 24.52 | T9G0120NEB5 | V | 26.441 | 90 | 21 | 46 | 20 | 16 | 19 | 4 | 120 | f | |
| 1 11 | - | 30.75 | 30.77 | T9G0160NEB2 | F | 33.249 | 100 | 24 | 51 | 25 | 20 | 23 | 4 | 120 | f | |
| - | - | 30.75 | 30.77 | T9G0160NEB5 | V | 33.249 | 100 | 24 | 51 | 25 | 20 | 23 | 4 | 120 | f | DIES |
