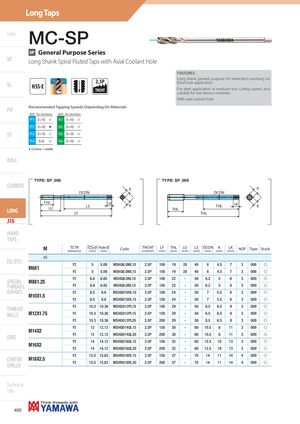

MC-SP
GP General Purpose Series
SP Long Shank Spiral Fluted Taps with Axial Coolant Hole
2.5P
SL HSS-E
THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | N1 | 5÷10 | I | |
| P2 | 5÷10 | H | N2 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | N3 | 5÷10 | I |
| P4 | 5÷8 | I | N4 | 5÷10 | I |
H 1st choice I suitable ROLL
FEATURES Long shank general purpose for extended overhang on blind hole application. For steel application at medium-low cutting speed, also suitable for non-ferrous materials. With axial coolant hole.
JIS-MC-SP
CARBIDE
LONG
JIS
HAND
TAPS
TYPE: SP_006
THL LU
TYPE: SP_009 K K DCON DCON LK K LK
LS THL K
THL LF THL
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M6X1 | P2 | 5 | 5.09 | MSHQ6.0ML10 | 2.5P | 100 | 19 | 28 | 40 | 6 | 4.5 | 7 | 3 | 006 | f |
| P2 | 5 | 5.09 | MSHQ6.0ML15 | 2.5P | 150 | 19 | 28 | 40 | 6 | 4.5 | 7 | 3 | 006 | f | |
| M8X125 | P2 | 6.8 | 6.85 | MSHQ8.0NL10 | 2.5P | 100 | 22 | - | 50 | 6.2 | 5 | 8 | 3 | 009 | f |
| . | P2 | 6.8 | 6.85 | MSHQ8.0NL15 | 2.5P | 150 | 22 | - | 50 | 6.2 | 5 | 8 | 3 | 009 | f |
| M10X15 | P2 | 8.5 | 8.6 | MSHQ010OL10 | 2.5P | 100 | 24 | - | 50 | 7 | 5.5 | 8 | 3 | 009 | f |
| . | P2 | 8.5 | 8.6 | MSHQ010OL15 | 2.5P | 150 | 24 | - | 50 | 7 | 5.5 | 8 | 3 | 009 | f |
| P2 | 10.3 | 10.36 | MSHQ012PL10 | 2.5P | 100 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | |
| M12X1.75 | P2 | 10.3 | 10.36 | MSHQ012PL15 | 2.5P | 150 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f |
| P2 | 10.3 | 10.36 | MSHQ012PL20 | 2.5P | 200 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | |
| M14X2 | P2 | 12 | 12.12 | MSHQ014QL15 | 2.5P | 150 | 30 | - | 60 | 10.5 | 8 | 11 | 3 | 009 | f |
| P2 | 12 | 12.12 | MSHQ014QL20 | 2.5P | 200 | 30 | - | 60 | 10.5 | 8 | 11 | 3 | 009 | f | |
| M16X2 | P2 | 14 | 14.12 | MSHQ016QL15 | 2.5P | 150 | 32 | - | 60 | 12.5 | 10 | 13 | 3 | 009 | f |
| P2 | 14 | 14.12 | MSHQ016QL20 | 2.5P | 200 | 32 | - | 60 | 12.5 | 10 | 13 | 3 | 009 | f | |
| P3 | 15.5 | 15.63 | MSHR018RL15 | 2.5P | 150 | 37 | - | 70 | 14 | 11 | 14 | 4 | 009 | f | |
| M18X2.5 | P3 | 15.5 | 15.63 | MSHR018RL20 | 2.5P | 200 | 37 | - | 70 | 14 | 11 | 14 | 4 | 009 | f |
