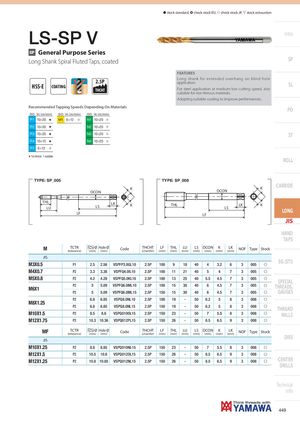

LS-SP V
GP General Purpose Series
Long Shank Spiral Fluted Taps, coated SP
FEATURES Long shank for extended overhang on blind hole 2.5P application.
HSS-E SL
COATING
THCHT For steel application at medium-low cutting speed, also suitable for non-ferrous materials. Adopting suitable coating to improve performances. Recommended Tapping Speeds Depending On Materials PO
| ISO | Vc (m/min) | ISO | Vc (m/min) | ISO | Vc (m/min) |
| P1 | 10÷20H | M1 | 6÷12I | N1 | 10÷20I |
| P2 | 10÷20H | N2 | 10÷20I | ||
| P3 | 10÷20H | N3 | 10÷20I | ||
| P4 | 10÷15H | N4 | 10÷20I | ||
| P7 | 6÷12I |
H 1st choice I suitable
ROLL
JIS-LS-SP V
TYPE: SP_005 TYPE: SP_008 K DCON DCON
THL LK THL LS K LU LS LF LF
LK
K
K
CARBIDE
LONG
JIS
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | EG STI | |||||||||||||||
| M3X0.5 | P1 | 2.5 | 2.56 | VSPFP3.0GL10 | 2.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f | |
| M4X0.7 | P2 | 3.3 | 3.38 | VSPFQ4.0IL10 | 2.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | f | |
| M5X0.8 | P2 | 4.2 | 4.28 | VSPFQ5.0KL10 | 2.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | f | SPECIAL |
| M6X1 | P2 | 5 | 5.09 | VSPFQ6.0ML10 | 2.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | THREADS, |
| P2 | 5 | 5.09 | VSPFQ6.0ML15 | 2.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | GAUGES | |
| M8X125 | P2 | 6.8 | 6.85 | VSPQ8.0NL10 | 2.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | |
| . | P2 | 6.8 | 6.85 | VSPQ8.0NL15 | 2.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | THREAD |
| M10X1.5 | P2 | 8.5 | 8.6 | VSPQ010OL15 | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | MILLS |
| M12X1.75 | P2 | 10.3 | 10.36 | VSPQ012PL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | DIES |
| JIS | ||||||||||||||||
| M10X1.25 | P2 | 8.8 | 8.85 | VSPQ010NL15 | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | |
| M12X1.5 | P2 | 10.5 | 10.6 | VSPQ012OL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | |
| M12X1.25 | P2 | 10.8 | 10.85 | VSPQ012NL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | CENTER DRILLS |
