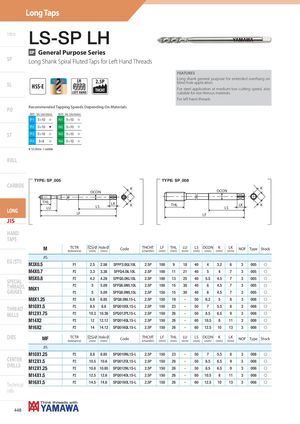

Общий каталог Yamawa 2021 - страница 447
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
LS-SP LH
GP General Purpose Series
SP Long Shank Spiral Fluted Taps for Left Hand Threads
FEATURES LH Long shank general purpose for extended overhang on 2.5P blind hole application.
SL HSS-E
THCHT For steel application at medium-low cutting speed, also LEFT HAND suitable for non-ferrous materials. For left hand threads. PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | N1 | 5÷10 | I | |
| P2 | 5÷10 | H | N2 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | N3 | 5÷10 | I |
| P4 | 5÷8 | I | N4 | 5÷10 | I |
H 1st choice I suitable ROLL JIS-LS-SP LH
CARBIDE
LONG
JIS
HAND
TAPS
TYPE: SP_005
THL LU
LF
TYPE: SP_008 K K DCON DCON
LK THL LK K
LS K LS LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M3X0.5 | P1 | 2.5 | 2.56 | SPFP3.0GL10L | 2.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f |
| M4X0.7 | P2 | 3.3 | 3.38 | SPFQ4.0IL10L | 2.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | f |
| M5X0.8 | P2 | 4.2 | 4.28 | SPFQ5.0KL10L | 2.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | f |
| M6X1 | P2 | 5 | 5.09 | SPFQ6.0ML10L | 2.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f |
| P2 | 5 | 5.09 | SPFQ6.0ML15L | 2.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | |
| M8X1.25 | P2 | 6.8 | 6.85 | SPQ8.0NL15-L | 2.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f |
| M10X1.5 | P2 | 8.5 | 8.6 | SPQ010OL15-L | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f |
| M12X1.75 | P2 | 10.3 | 10.36 | SPQ012PL15-L | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f |
| M14X2 | P2 | 12 | 12.12 | SPQ014QL15-L | 2.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f |
| M16X2 | P2 | 14 | 14.12 | SPQ016QL15-L | 2.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M10X1.25 | P2 | 8.8 | 8.85 | SPQ010NL15-L | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f |
| M12X1.5 | P2 | 10.5 | 10.6 | SPQ012OL15-L | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f |
| M12X1.25 | P2 | 10.8 | 10.85 | SPQ012NL15-L | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f |
| M14X1.5 | P2 | 12.5 | 12.6 | SPQ014OL15-L | 2.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f |
| M16X1.5 | P2 | 14.5 | 14.6 | SPQ016OL15-L | 2.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f |
