Каталоги Yamawa твердосплавные метчики для закаленной стали

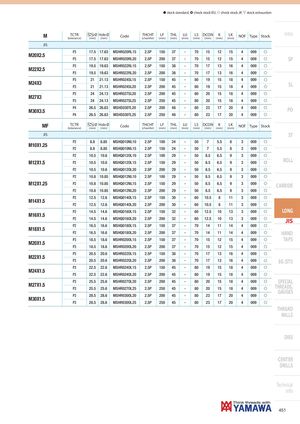

| M JIS | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| M20X25 | P3 | 17.5 | 17.63 | MSHR020RL15 | 2.5P | 150 | 37 | - | 70 | 15 | 12 | 15 | 4 | 009 | f | |
| . | P3 | 17.5 | 17.63 | MSHR020RL20 | 2.5P | 200 | 37 | - | 70 | 15 | 12 | 15 | 4 | 009 | f | SP |
| M22X25 | P3 | 19.5 | 19.63 | MSHR022RL15 | 2.5P | 150 | 38 | - | 70 | 17 | 13 | 16 | 4 | 009 | f | |
| . | P3 | 19.5 | 19.63 | MSHR022RL20 | 2.5P | 200 | 38 | - | 70 | 17 | 13 | 16 | 4 | 009 | f | |
| P3 | 21 | 21.13 | MSHR024SL15 | 2.5P | 150 | 45 | - | 80 | 19 | 15 | 18 | 4 | 009 | f | ||
| M24X3 | P3 | 21 | 21.13 | MSHR024SL20 | 2.5P | 200 | 45 | - | 80 | 19 | 15 | 18 | 4 | 009 | f | SL |
| P3 | 24 | 24.13 | MSHR027SL20 | 2.5P | 200 | 45 | - | 80 | 20 | 15 | 18 | 4 | 009 | f | ||
| M27X3 | P3 | 24 | 24.13 | MSHR027SL25 | 2.5P | 250 | 45 | - | 80 | 20 | 15 | 18 | 4 | 009 | f | |
| M30X35 | P4 | 26.5 | 26.63 | MSHS030TL20 | 2.5P | 200 | 48 | - | 80 | 23 | 17 | 20 | 4 | 009 | f | PO |
| . | P4 | 26.5 | 26.63 | MSHS030TL25 | 2.5P | 250 | 48 | - | 80 | 23 | 17 | 20 | 4 | 009 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ST | |||||||||||||||
| M1X12 | P2 | 8.8 | 8.85 | MSHQ010NL10 | 2.5P | 100 | 24 | - | 50 | 7 | 5.5 | 8 | 3 | 009 | f | |
| 0.5 | P2 | 8.8 | 8.85 | MSHQ010NL15 | 2.5P | 150 | 24 | - | 50 | 7 | 5.5 | 8 | 3 | 009 | f | |
| P2 | 10.5 | 10.6 | MSHQ012OL10 | 2.5P | 100 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | ||
| M12X1.5 | P2 | 10.5 | 10.6 | MSHQ012OL15 | 2.5P | 150 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | ROLL |
| P2 | 10.5 | 10.6 | MSHQ012OL20 | 2.5P | 200 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | ||
| P2 | 10.8 | 10.85 | MSHQ012NL10 | 2.5P | 100 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | ||
| M12X1.25 | P2 | 10.8 | 10.85 | MSHQ012NL15 | 2.5P | 150 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | CARBIDE |
| P2 | 10.8 | 10.85 | MSHQ012NL20 | 2.5P | 200 | 29 | - | 50 | 8.5 | 6.5 | 9 | 3 | 009 | f | ||
| P2 | 12.5 | 12.6 | MSHQ014OL15 | 2.5P | 150 | 30 | - | 60 | 10.5 | 8 | 11 | 3 | 009 | f | ||
| M14X1.5 | P2 | 12.5 | 12.6 | MSHQ014OL20 | 2.5P | 200 | 30 | - | 60 | 10.5 | 8 | 11 | 3 | 009 | f | |
| P2 | 14.5 | 14.6 | MSHQ016OL15 | 2.5P | 150 | 32 | - | 60 | 12.5 | 10 | 13 | 3 | 009 | f | LONG | |
| M16X1.5 | P2 | 14.5 | 14.6 | MSHQ016OL20 | 2.5P | 200 | 32 | - | 60 | 12.5 | 10 | 13 | 3 | 009 | f | JIS |
| M18X15 | P2 | 16.5 | 16.6 | MSHQ018OL15 | 2.5P | 150 | 37 | - | 70 | 14 | 11 | 14 | 4 | 009 | f | |
| . | P2 | 16.5 | 16.6 | MSHQ018OL20 | 2.5P | 200 | 37 | - | 70 | 14 | 11 | 14 | 4 | 009 | f | HAND |
| P3 | 18.5 | 18.6 | MSHR020OL15 | 2.5P | 150 | 37 | - | 70 | 15 | 12 | 15 | 4 | 009 | f | TAPS | |
| M20X1.5 | P3 | 18.5 | 18.6 | MSHR020OL20 | 2.5P | 200 | 37 | - | 70 | 15 | 12 | 15 | 4 | 009 | f | |
| P3 | 20.5 | 20.6 | MSHR022OL15 | 2.5P | 150 | 38 | - | 70 | 17 | 13 | 16 | 4 | 009 | f | ||
| M22X1.5 | P3 | 20.5 | 20.6 | MSHR022OL20 | 2.5P | 200 | 38 | - | 70 | 17 | 13 | 16 | 4 | 009 | f | EG (STI) |
| M24X1 | P3 | 22.5 | 22.6 | MSHR024OL15 | 2.5P | 150 | 45 | - | 80 | 19 | 15 | 18 | 4 | 009 | f | |
| .5 | P3 | 22.5 | 22.6 | MSHR024OL20 | 2.5P | 200 | 45 | - | 80 | 19 | 15 | 18 | 4 | 009 | f | |
| P3 | 25.5 | 25.6 | MSHR027OL20 | 2.5P | 200 | 45 | - | 80 | 20 | 15 | 18 | 4 | 009 | f | SPECIAL | |
| M27X1.5 | P3 | 25.5 | 25.6 | MSHR027OL25 | 2.5P | 250 | 45 | - | 80 | 20 | 15 | 18 | 4 | 009 | f | THREADS, |
| M30X15 | P3 | 28.5 | 28.6 | MSHR030OL20 | 2.5P | 200 | 45 | - | 80 | 23 | 17 | 20 | 4 | 009 | f | GAUGES |
| . | P3 | 285 | 286 | MSHR030OL25 | 25P | 250 | 45 | 80 | 23 | 17 | 20 | 4 | 009 | f | ||
| . | . | . | - | THREAD MILLS |
