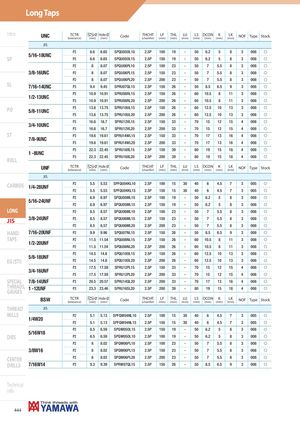

| Intro | UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| P2 | 6.6 | 6.65 | SPQU05OL10 | 2.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | ||
| SP | 5/16-18UNC | P2 | 6.6 | 6.65 | SPQU05OL15 | 2.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f |
| P2 | 8 | 8.07 | SPQU06PL10 | 2.5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | ||
| 3/8-16UNC | P2 | 8 | 8.07 | SPQU06PL15 | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | |
| P2 | 8 | 8.07 | SPQU06PL20 | 2.5P | 200 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | ||
| SL | 7/16-14UNC | P3 | 9.4 | 9.45 | SPRU07QL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f |
| 1/213UNC | P3 | 10.9 | 10.91 | SPRU08RL15 | 2.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | |
| - | P3 | 10.9 | 10.91 | SPRU08RL20 | 2.5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | |
| PO | 5/811UNC | P3 | 13.6 | 13.75 | SPRU10UL15 | 2.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f |
| - | P3 | 13.6 | 13.75 | SPRU10UL20 | 2.5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f | |
| /41NC | P3 | 16.6 | 16.7 | SPRU12VL15 | 2.5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | |
| 3-0U | P3 | 16.6 | 16.7 | SPRU12VL20 | 2.5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | |
| ST | 7/89UNC | P3 | 19.6 | 19.61 | SPRU14WL15 | 2.5P | 150 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f |
| - | P3 | 19.6 | 19.61 | SPRU14WL20 | 2.5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f | |
| 1 8UNC | P3 | 22.3 | 22.45 | SPRU16XL15 | 2.5P | 150 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f | |
| ROLL | - | P3 | 22.3 | 22.45 | SPRU16XL20 | 2.5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| CARBIDE | P2 | 5.5 | 5.53 | SPFQU04KL10 | 2.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | |
| 1/4-28UNF | P2 | 5.5 | 5.53 | SPFQU04KL15 | 2.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | |
| P2 | 6.9 | 6.97 | SPQU05ML10 | 2.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | ||
| 5/16-24UNF | P2 | 6.9 | 6.97 | SPQU05ML15 | 2.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | |
| LONG | P2 | 8.5 | 8.57 | SPQU06ML10 | 2.5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | |
| JIS | 3/8-24UNF | P2 | 8.5 | 8.57 | SPQU06ML15 | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f |
| P2 | 8.5 | 8.57 | SPQU06ML20 | 2.5P | 200 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | ||
| HAND | 7/16-20UNF | P2 | 9.9 | 9.96 | SPQU07NL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f |
| TAPS | P2 | 11.5 | 11.54 | SPQU08NL15 | 2.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | |
| 1/2-20UNF | P2 | 11.5 | 11.54 | SPQU08NL20 | 2.5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | |
| P2 | 14.5 | 14.6 | SPQU10OL15 | 2.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f | ||
| EG (STI) | 5/8-18UNF | P2 | 14.5 | 14.6 | SPQU10OL20 | 2.5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f |
| P3 | 17.5 | 17.59 | SPRU12PL15 | 2.5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | ||
| 3/4-16UNF | P3 | 17.5 | 17.59 | SPRU12PL20 | 2.5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | |
| SPECIAL | 7/8-14UNF | P3 | 20.5 | 20.57 | SPRU14QL20 | 2.5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f |
| THREADS, GAUGES | 1 -12UNF | P3 | 23.3 | 23.46 | SPRU16SL20 | 2.5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f |
| BSW | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| THREAD | JIS | |||||||||||||||
| MILLS | P2 | 5.1 | 5.13 | SPFQW04NL10 | 2.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | |
| 1/4W20 | P2 | 5.1 | 5.13 | SPFQW04NL15 | 2.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | |
| 5/16W18 | P2 | 6.5 | 6.59 | SPQW05OL15 | 2.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | |
| DIES | P2 | 6.5 | 6.59 | SPQW05OL10 | 2.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | |
| P2 | 8 | 8.02 | SPQW06PL10 | 2.5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | ||
| 3/8W16 | P2 | 8 | 8.02 | SPQW06PL15 | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | |
| CENTER | P2 | 8 | 8.02 | SPQW06PL20 | 2.5P | 200 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | |
| DRILLS | 7/16W14 | P3 | 9.3 | 9.39 | SPRW07QL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f |
