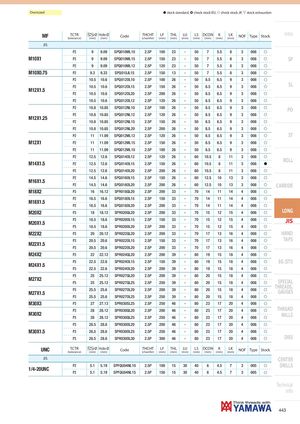

Общий каталог Yamawa 2021 - страница 442
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | P2 | 9 | 9.09 | SPQ010ML10 | 2.5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | |
| M10X1 | P2 | 9 | 9.09 | SPQ010ML15 | 2.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | SP |
| P2 | 9 | 9.09 | SPQ010ML12 | 2.5P | 120 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | ||
| M10X0.75 | P2 | 9.3 | 9.33 | SPQ010JL15 | 2.5P | 150 | 13 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | |
| P2 | 10.5 | 10.6 | SPQ012OL10 | 2.5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | ||
| M12X15 | P2 | 10.5 | 10.6 | SPQ012OL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | SL |
| . | P2 | 10.5 | 10.6 | SPQ012OL20 | 2.5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | |
| P2 | 10.5 | 10.6 | SPQ012OL12 | 2.5P | 120 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | ||
| P2 | 10.8 | 10.85 | SPQ012NL10 | 2.5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | PO | |
| M12X125 | P2 | 10.8 | 10.85 | SPQ012NL12 | 2.5P | 120 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | |
| . | P2 | 10.8 | 10.85 | SPQ012NL15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | |
| P2 | 10.8 | 10.85 | SPQ012NL20 | 2.5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | ||
| P2 | 11 | 11.09 | SPQ012ML12 | 2.5P | 120 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | ST | |
| M12X1 | P2 | 11 | 11.09 | SPQ012ML15 | 2.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | |
| P2 | 11 | 11.09 | SPQ012ML10 | 2.5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | ||
| P2 | 12.5 | 12.6 | SPQ014OL12 | 2.5P | 120 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | ||
| M14X1.5 | P2 | 12.5 | 12.6 | SPQ014OL15 | 2.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | h | ROLL |
| P2 | 12.5 | 12.6 | SPQ014OL20 | 2.5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | ||
| P2 | 14.5 | 14.6 | SPQ016OL15 | 2.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f | ||
| M16X1.5 | P2 | 14.5 | 14.6 | SPQ016OL20 | 2.5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f | CARBIDE |
| M18X2 | P3 | 16 | 16.12 | SPR018QL20 | 2.5P | 200 | 33 | - | 70 | 14 | 11 | 14 | 4 | 008 | f | |
| P2 | 16.5 | 16.6 | SPQ018OL15 | 2.5P | 150 | 33 | - | 70 | 14 | 11 | 14 | 4 | 008 | f | ||
| M18X1.5 | P2 | 16.5 | 16.6 | SPQ018OL20 | 2.5P | 200 | 33 | - | 70 | 14 | 11 | 14 | 4 | 008 | f | |
| M20X2 | P3 | 18 | 18.12 | SPR020QL20 | 2.5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | LONG |
| P3 | 18.5 | 18.6 | SPR020OL15 | 2.5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | JIS | |
| M20X1.5 | P3 | 18.5 | 18.6 | SPR020OL20 | 2.5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | |
| M22X2 | P3 | 20 | 20.12 | SPR022QL20 | 2.5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f | HAND |
| P3 | 20.5 | 20.6 | SPR022OL15 | 2.5P | 150 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f | TAPS | |
| M22X1.5 | P3 | 20.5 | 20.6 | SPR022OL20 | 2.5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f | |
| M24X2 | P3 | 22 | 22.12 | SPR024QL20 | 2.5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f | |
| P3 | 22.5 | 22.6 | SPR024OL15 | 2.5P | 150 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f | EG (STI) | |
| M24X1.5 | P3 | 22.5 | 22.6 | SPR024OL20 | 2.5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f | |
| P3 | 25 | 25.12 | SPR027QL20 | 2.5P | 200 | 39 | - | 80 | 20 | 15 | 18 | 4 | 008 | f | ||
| M27X2 | P3 | 25 | 25.12 | SPR027QL25 | 2.5P | 250 | 39 | - | 80 | 20 | 15 | 18 | 4 | 008 | f | SPECIAL |
| P3 | 25.5 | 25.6 | SPR027OL20 | 2.5P | 200 | 39 | - | 80 | 20 | 15 | 18 | 4 | 008 | f | THREADS, GAUGES | |
| M27X1.5 | P3 | 25.5 | 25.6 | SPR027OL25 | 2.5P | 250 | 39 | - | 80 | 20 | 15 | 18 | 4 | 008 | f | |
| M30X3 | P3 | 27 | 27.13 | SPR030SL25 | 2.5P | 250 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | |
| P3 | 28 | 28.12 | SPR030QL20 | 2.5P | 200 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | THREAD | |
| M30X2 | P3 | 28 | 28.12 | SPR030QL25 | 2.5P | 250 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | MILLS |
| P3 | 28.5 | 28.6 | SPR030OL20 | 2.5P | 200 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | ||
| M30X1.5 | P3 | 28.5 | 28.6 | SPR030OL25 | 2.5P | 250 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | |
| P3 | 28.5 | 28.6 | SPR030OL30 | 2.5P | 300 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | DIES | |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | CENTER | |||||||||||||||
| P2 | 5.1 | 5.19 | SPFQU04NL10 | 2.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | DRILLS | |
| 1/4-20UNC | P2 | 5.1 | 5.19 | SPFQU04NL15 | 2.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f |
