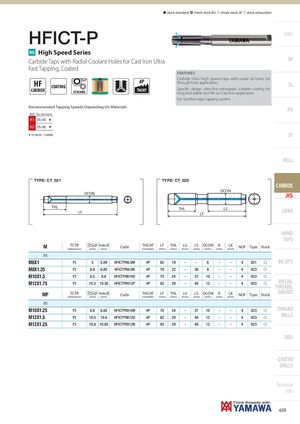

HFICT-P
HS High Speed Series
Carbide Taps with Radial Coolant Holes for Cast Iron Ultra SP
Fast Tapping, Coated
FEATURES Carbide Ultra High Speed taps with radial oil holes for
| HF | 4P | through hole application. | |||
| SL | |||||
| COATING | |||||
| CARBIDE | THCHT | Specifi c design, ultra fi ne micrograin, suitable coating for | |||
| SYNCHRO | long and stable tool life on Cast Iron application. | ||||
| For Synchro-rigid tapping system. | |||||
| Recommended Tapping Speeds Depending On Materials | PO | ||||
| ISO Vc (m/min) | |||||
| K1 25÷50 | H | ||||
| K2 25÷50 | H |
H 1st choice I suitable ST
ROLL
JIS-HFICT-P
TYPE: CT_021 TYPE: CT_023 DCON
THL THL LF
CARBIDE
DCON
JIS
LS LONG LF
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| M6X1 | P3 | 5 | 5.09 | HFICTPR6.0M | 4P | 62 | 19 | - | - | 6 | - | - | 4 | 021 | f | EG (STI) |
| M8X1.25 | P3 | 6.8 | 6.85 | HFICTPR8.0N | 4P | 70 | 22 | - | 36 | 8 | - | - | 4 | 023 | f | |
| M10X1.5 | P3 | 8.5 | 8.6 | HFICTPR010O | 4P | 75 | 24 | - | 37 | 10 | - | - | 4 | 023 | f | |
| M12X1.75 | P3 | 10.3 | 10.36 | HFICTPR012P | 4P | 82 | 29 | - | 40 | 12 | - | - | 4 | 023 | f | SPECIAL THREADS |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | , GAUGES |
| JIS | ||||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | HFICTPR010N | 4P | 75 | 24 | - | 37 | 10 | - | - | 4 | 023 | f | THREAD |
| M12X1.5 | P3 | 10.5 | 10.6 | HFICTPR012O | 4P | 82 | 29 | - | 40 | 12 | - | - | 4 | 023 | f | MILLS |
| M12X1.25 | P3 | 10.8 | 10.85 | HFICTPR012N | 4P | 82 | 29 | - | 40 | 12 | - | - | 4 | 023 | f |
