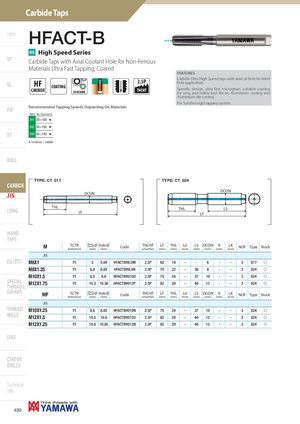

HFACT-B
HS High Speed Series
SP Carbide Taps with Axial Coolant Hole for Non-Ferrous
Materials Ultra Fast Tapping, Coated
HF 2.5P
SL
COATING
CARBIDE THCHT
SYNCHRO
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) N1 30÷100 H N2 30÷100 H ST N4 30÷100 H H 1st choice I suitable
FEATURES Carbide Ultra High Speed taps with axial oil hole for blind hole application. Specific design, ultra fine micrograin, suitable coating for long and stable tool life on Aluminium casting and Aluminium die-casting. For Synchro-rigid tapping system.
ROLL
JIS-HFACT-B
TYPE: CT_017 TYPE: CT_024
CARBIDE
JIS DCON
THL LONG THL LF
DCON
LS LF
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M6X1 | P3 | 5 | 5.09 | HFACTBR6.0M | 2.5P | 62 | 19 | - | - | 6 | - | - | 3 | 017 | f |
| M8X1.25 | P3 | 6.8 | 6.85 | HFACTBR8.0N | 2.5P | 70 | 22 | - | 36 | 8 | - | - | 3 | 024 | f |
| M10X1.5 | P3 | 8.5 | 8.6 | HFACTBR010O | 2.5P | 75 | 24 | - | 37 | 10 | - | - | 3 | 024 | f |
| M12X1.75 | P3 | 10.3 | 10.36 | HFACTBR012P | 2.5P | 82 | 29 | - | 40 | 12 | - | - | 3 | 024 | f |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | HFACTBR010N | 2.5P | 75 | 24 | - | 37 | 10 | - | - | 3 | 024 | f |
| M12X1.5 | P3 | 10.5 | 10.6 | HFACTBR012O | 2.5P | 82 | 29 | - | 40 | 12 | - | - | 3 | 024 | f |
| M12X1.25 | P3 | 10.8 | 10.85 | HFACTBR012N | 2.5P | 82 | 29 | - | 40 | 12 | - | - | 3 | 024 | f |
THREADS,
