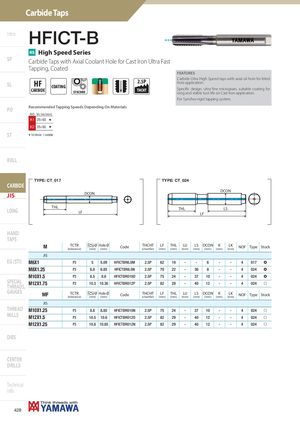

HFICT-B
HS High Speed Series
SP Carbide Taps with Axial Coolant Hole for Cast Iron Ultra Fast
Tapping, Coated
FEATURES Carbide Ultra High Speed taps with axial oil hole for blind
| HF | 2.5P | hole application. | |||
| SL | |||||
| COATING | |||||
| CARBIDE | THCHT | Specifi c design, ultra fi ne micrograin, suitable coating for | |||
| SYNCHRO | long and stable tool life on Cast Iron application. | ||||
| For Synchro-rigid tapping system. | |||||
| PO | Recommended Tapping Speeds Depending On Materials | ||||
| ISO Vc (m/min) | |||||
| K1 25÷50 | H | ||||
| K2 25÷50 | H |
ST H 1st choice I suitable
ROLL
JIS-HFICT-B
TYPE: CT_017 TYPE: CT_024
CARBIDE
JIS DCON
THL LONG THL LF
DCON
LS LF
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M6X1 | P3 | 5 | 5.09 | HFICTBR6.0M | 2.5P | 62 | 19 | - | - | 6 | - | - | 4 | 017 | ) |
| M8X1.25 | P3 | 6.8 | 6.85 | HFICTBR8.0N | 2.5P | 70 | 22 | - | 36 | 8 | - | - | 4 | 024 | ) |
| M10X1.5 | P3 | 8.5 | 8.6 | HFICTBR010O | 2.5P | 75 | 24 | - | 37 | 10 | - | - | 4 | 024 | ) |
| M12X1.75 | P3 | 10.3 | 10.36 | HFICTBR012P | 2.5P | 82 | 29 | - | 40 | 12 | - | - | 4 | 024 | f |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | HFICTBR010N | 2.5P | 75 | 24 | - | 37 | 10 | - | - | 4 | 024 | f |
| M12X1.5 | P3 | 10.5 | 10.6 | HFICTBR012O | 2.5P | 82 | 29 | - | 40 | 12 | - | - | 4 | 024 | f |
| M12X1.25 | P3 | 10.8 | 10.85 | HFICTBR012N | 2.5P | 82 | 29 | - | 40 | 12 | - | - | 4 | 024 | f |
