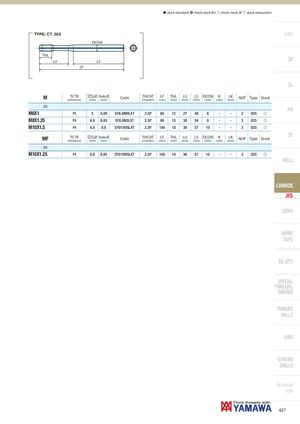

TYPE: CT_025 DCON
THL LU LS LF
Intro
SP
SL
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | PO | |||||||||||||||
| M6X1 | P3 | 5 | 5.09 | SY6.0MRLXT | 2.5P | 80 | 12 | 27 | 48 | 6 | - | - | 3 | 025 | f | |
| M8X1.25 | P4 | 6.8 | 6.85 | SY8.0NSLXT | 2.5P | 90 | 15 | 30 | 54 | 8 | - | - | 3 | 025 | f | |
| M10X1.5 | P4 | 8.5 | 8.6 | SY010OSLXT | 2.5P | 100 | 18 | 36 | 57 | 10 | - | - | 3 | 025 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | ST |
| JIS | ||||||||||||||||
| M10X1.25 | P4 | 8.8 | 8.85 | SY010NSLXT | 2.5P | 100 | 18 | 36 | 57 | 10 | - | - | 3 | 025 | f |
